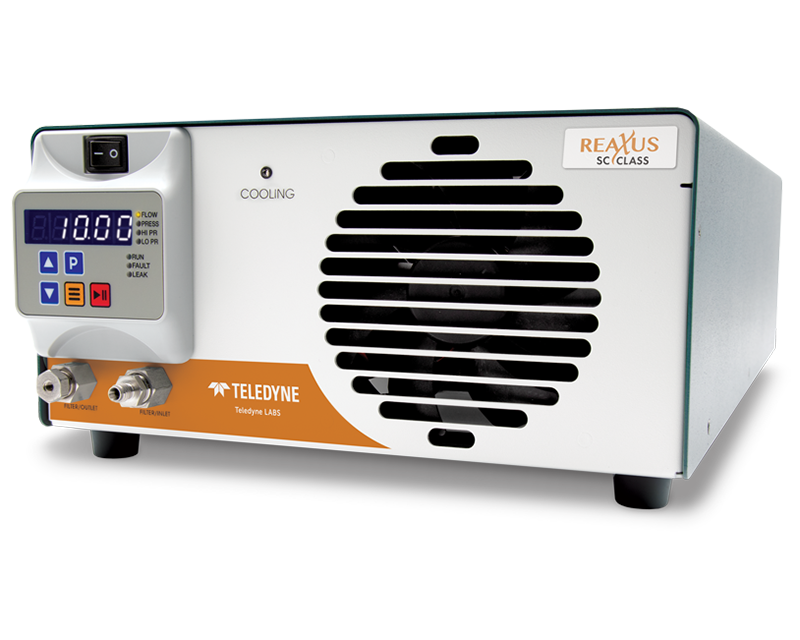

• Reaxus SC Class scientific instrument with Teledyne logo on a white background

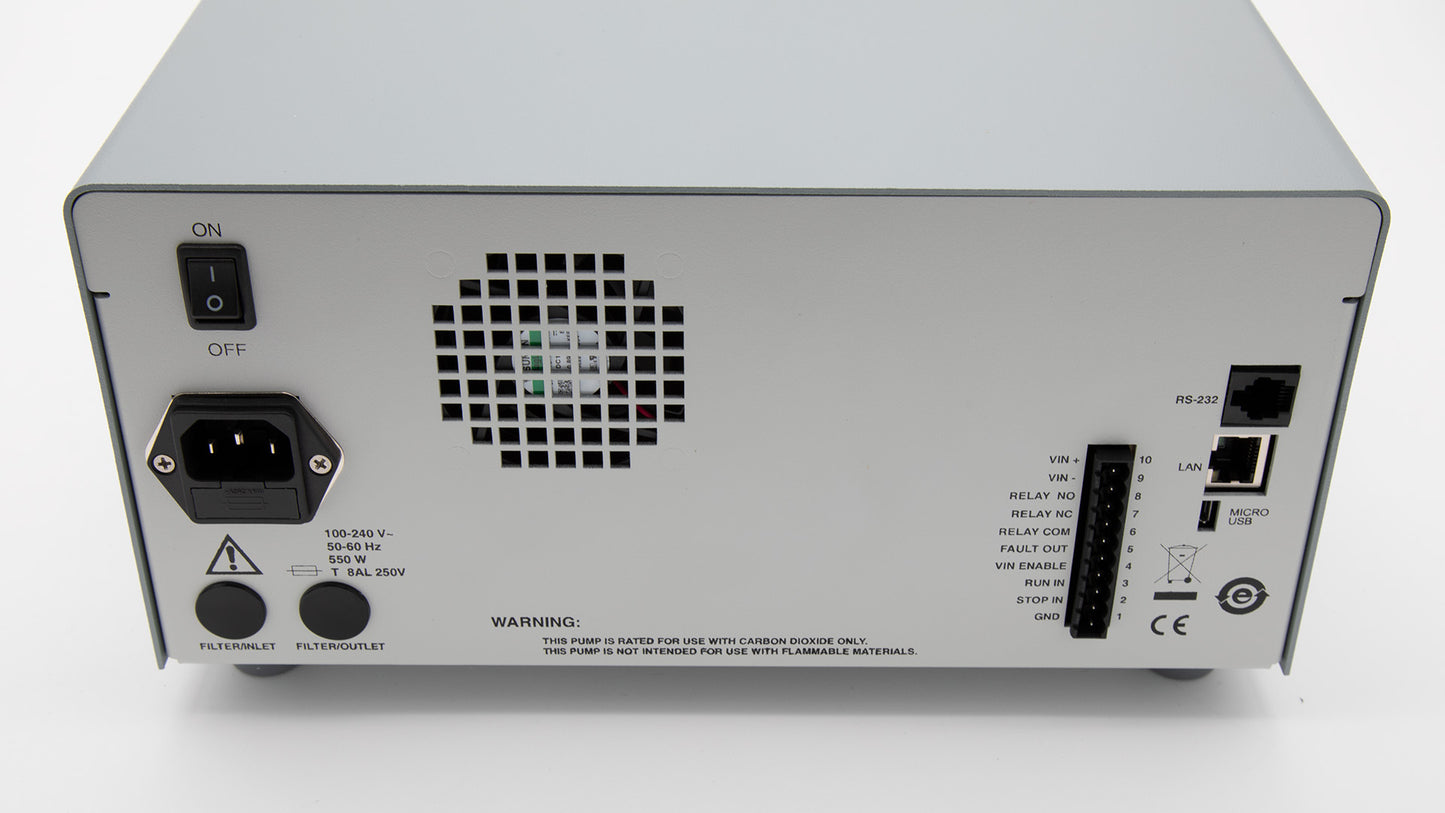

  • The rear of a square pumping device, picturing various electrical connection point and a fan plate.

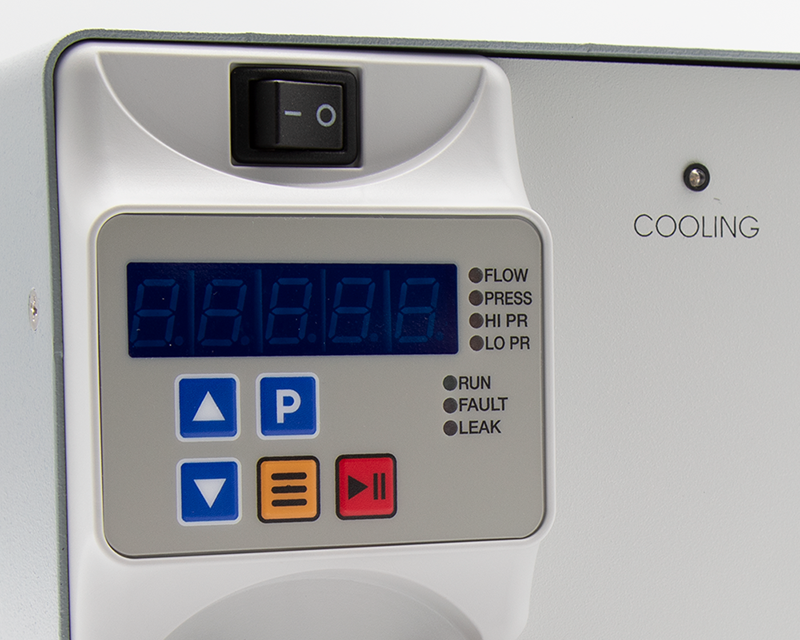

  • Control panel with digital display and buttons on a machine labeled 'Cooling'.

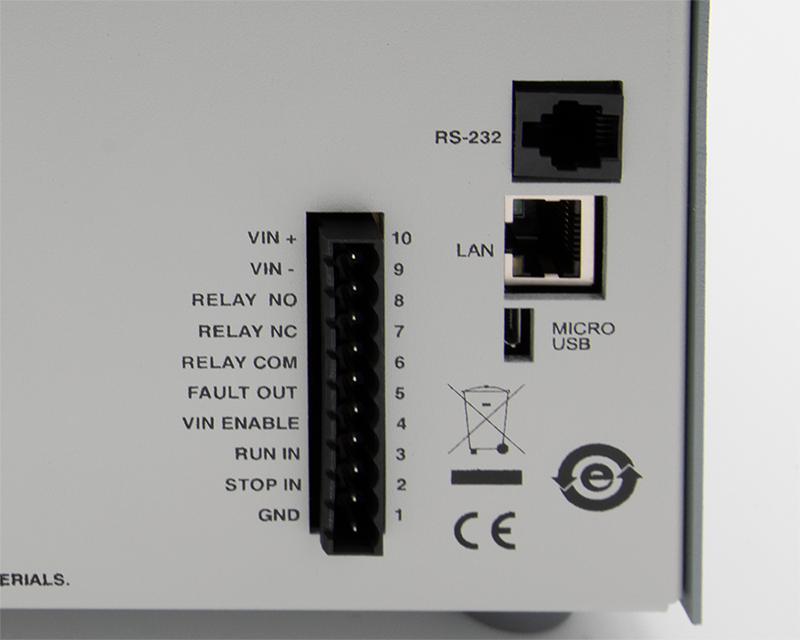

  • Back panel of electronic equipment with connectors and labels
1 4

ReaXus® SC Class 24 mL Positive Displacement Pump

ReaXus® SC Class 24 mL Positive Displacement Pump

SC024SRX

$ 10,923.00
$ 10,923.00
Sale Sold out
Choose Type:

ReaXus® SC Class 24 mL Positive Displacement Pump for Liquid CO2:

  • Flow Rate:  00.01 to 24.00 mL/Minute
  • Maximum Pressure:  10,000 psi
  • Material:  Aluminum Heads and Stainless Steel Fluid Path
  • Cooling System:  Peltier thermoelectric
  • Available in Constant Flow or Constant Pressure

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus® SC Class
Flow Rates: ​​0.01 to 24.00 mL/min
​Pressure : 0 to 10,000 psi
​Pressure Accuracy: ​± 2% of full scale pressure
​Pressure Zero Offset: 0 psi +10 psi
​Flow Accuracy: (Constant Flow)
± 2% using 100% Methanol @ 1000 psi
± 5% using CO2 (Based on gas volume measurements and back calculation to liquid)
​Flow Precision: (Constant Flow)
​0.5% RSD using 100% Methanol @ 1000 psi
​Pressure Control Accuracy: (Constant Pressure)​
​<10% or 100 psi whichever is larger​
​Weight: 24.0 lbs (10.8 kg)
​Power: ​110-120 VAC, 50-60 Hz
​Back Panel Inputs: Remote run/stop inputs (5 volt TTL type)
0 to 10 volt flowrate control input
0 to 10 KHz flowrate control input
USB and RS-232 serial communication ports for complete control and status monitoring
​Back Panel Output
​Normally open and normally closed relay contacts (SPDT, form C, 0.25 amp max, 50 volt max) indicate when a pressure fault or motor stall fault occurs.​
Pulsation
(Constant Flow)
​​± ​5% @ 1.0 mL/min using 100% Methanol @ 1000 psi

Dimensions

Height: 5.75 Inches (15.0 cm)
Width: 11.125 Inches (28.0 cm)
Depth: 21.6 Inches (54.9 cm)
