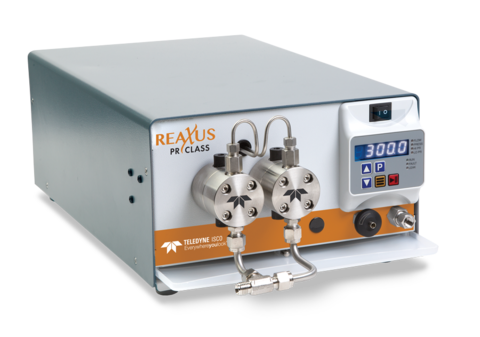

• A ReaXus pump tailored for laboratory environments, emphasizing its innovative design and practical applications in research.
1 1

ReaXus® PR Class 100 mL Stainless Steel Dual Piston Pump

ReaXus® PR Class 100 mL Stainless Steel Dual Piston Pump

PR100SRX

$ 9,635.00
$ 9,635.00
Sale Sold out

ReaXus® PR Class 100 mL Stainless Steel Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 100.00 mL/Minute
  • Maximum Pressure:  4,000 psi
  • Material:  Stainless Steel Fluid Path
  • Automatic Piston Wash:  Yes
  • Pressure & Leak Sensors:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Stainless Steel Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus PR Class
Flow Rate Range and Max. Pressure Ratings*: ​0.0-100 mL/min (4,000 psi)
​Pulsation**: 100 mL pumps: ≤2.0% @ 10 mL/min and 1000 psi
Pressure Accuracy: All 100 mL pumps and PEEK 300 mL: ±50 ps
​Flow Reproducibility: 0.5% RSD (1.0 mL/min and above; 80:20 Water/IPA; 1000 psi)
1% RSD (3.0 mL/min and above; 80:20 Water/IPA; 500 psi)
Flow Rate Accuracy: ±3% (0.5 mL/min and above; 80:20 Water/IPA; 1,000 psi)
±3% (1.5 mL/min and above; 80:20 Water/IPA; 500 psi)
​Wetted Materials: Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, Alumina, UHMWPE, PTFE, ETFE, PFA
​Weight: 26.3 Lbs (11.9 Kg)
​Power: ​100-240 VAC (±10%), 50-60 Hz
​Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.​

**Pulsation value with pulse dampener.​​

Dimensions

Height: 6.4 Inches (16.1 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.7 Inches (45 cm)
