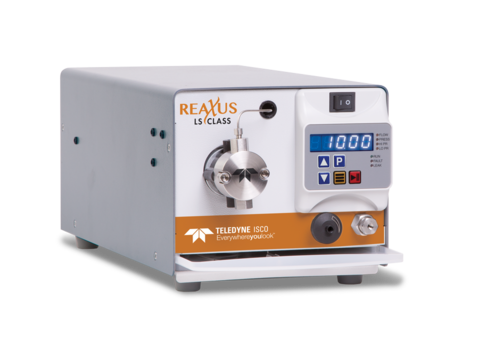

ReaXus® LS Class 40 mL Stainless Steel Single Piston Pump

Name: ReaXus® LS Class 40 mL Stainless Steel Single Piston Pump
Brand: Teledyne SSI
SKU: LS040SRX
Price: 5675.0 USD
Availability: InStock

SKU:LS040SRX

$ 5,675.00

Sale Sold out

Product variants

Quantity

ReaXus® LS Class 40 mL Stainless Steel Single Piston Pump with Belt Drive and Shaped Cam:

Flow Rate: 00.00 to 40.00 mL/Minute
Maximum Pressure: 1,600 psi
Material: Stainless Steel Fluid Path
Automatic Piston Wash: Yes
Dampener: Yes
Piston Seal: Standard (Stainless Steel Energizer)
Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note: This replaces part numbers LL040SFP1A, LL040SFP1C, LS040SFN1A, LS040SFN1C, LS040SFN2C, LS040SFP1A, LS040SFP1C, SL040SFP2A, LS040SFP2C, LS040SFT1A, LS040SFT1C, LS040SFT1D, LS040SFT1XFTL, LS040SFT1XFTLSCE, LS040SFT2A, LS040SFT2B, LS040SFT2C, LS040SFX1A, LS040SNT1A, MX040SFN1A, MX040SFN1C, MX040SFP1A, MX040SFP1C, MX040SFP4C, MX040SFT1A, MX040SFT1C, MX040SFT1XFTL, MX040SFT1XFTLSCE, MX040SFT2C, MX040SNP1C, MX040SNT2B

Estimated Shipment Time (After Receipt of Order): 28 Day(s)

Specifications

ReaXus LS Class
Flow Rate Range and Max. Pressure Ratings*: 0.0-40.0 mL/min (1500 psi)
Pulsation**: ≤2.0% @ 4 mL/min and 80:20 Water/IPA; 1,000 psi (40 mL)
Pressure Accuracy: ±50 psi
Flow Reproducibility: 1% RSD (0.5 – 40.0 mL/min; 80:20 Water/IPA; 1,000 psi) (40 mL)
Flow Rate Accuracy: ±2% (4.0 – 40.0 mL/min; 80:20 Water/IPA; 1,000 psi) (40 mL)
Wetted Materials: Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, PFA, PTFE, ETFE
Weight: 15.5 Lbs. (7.0 Kg)
Power: 100-240 VAC (±10%), 50-60 Hz
Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.
**Pulsation value with pulse dampener. For a full list of product specifications, see the datasheet.

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 7.0 Inches (17.8 cm)
Depth: 16.0 Inches (40.6 cm)
