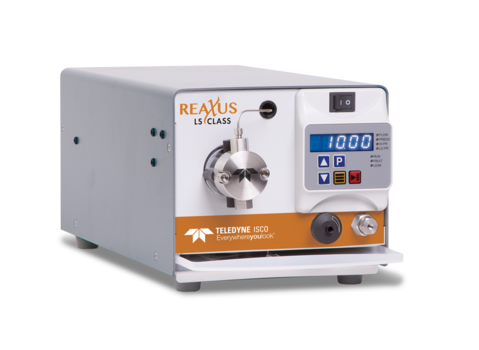

ReaXus® LS Class 5 mL Stainless Steel Single Piston Pump

ReaXus® LS Class 5 mL Stainless Steel Single Piston Pump

LS005SRX

$ 5,675.00
$ 5,675.00
Sale Sold out

ReaXus® LS Class 5 mL Stainless Steel Single Piston Pump with Belt Drive and Shaped Cam:

  • Flow Rate:  00.00 to 05.00 mL/Minute
  • Maximum Pressure:  6,000 psi
  • Material:  Stainless Steel Fluid Path
  • Automatic Piston Wash:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Stainless Steel Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaces part numbers LS005SFP1A, LS005SNP1A, LS005SFN1A, LS005SFN1C, LS005SFN2C, LS005SFN2G, LS005SFP1A, LS005SFP1B, LS005SFP1C, LS005SFP2A, LS005SFP2B, LS005SFP2C, LS005SFT1A, LS005SFT1B, LS005SFT1C, LS005SFT2A, LS005SFT2B, LS005SFT2C, LS005SFX1B, LS005SNP1A, LS005SNT1A, LS005SNT1B, LS005SNT2C, LS005SNT1A, LS005SNT1B, LS005SNT2C, LS010JNN1B

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus LS Class
Flow Rate Range and Max. Pressure Ratings*: ​0.0-5.000 mL/min (6,000 psi Stainless)
​Pulsation**: ≤1.5% @ 1 mL/min and 80:20 Water/IPA; 1,000 ps (5 mL)
Pressure Accuracy: ±50 psi
​Flow Reproducibility: 1% RSD (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL)
Flow Rate Accuracy: ±2% (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL)
​Wetted Materials: Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, PFA, PTFE, ETFE
​Weight: ​15.5 Lbs. (7.0 Kg)
​Power: ​100-240 VAC (±10%), 50-60 Hz
​Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.
**Pulsation value with pulse dampener. For a full list of product specifications, see the datasheet.

Dimensions
