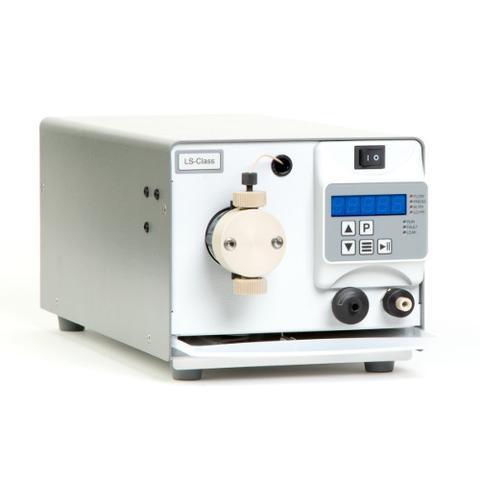

• A ReaXus pump tailored for laboratory environments, emphasizing its innovative design and practical applications in research.
1 1

ReaXus® LS Class 5 mL PEEK Single Piston Pump

ReaXus® LS Class 5 mL PEEK Single Piston Pump

LS005PRX

$ 5,675.00
$ 5,675.00
Sale Sold out

ReaXus® LS Class 5 mL PEEK Single Piston Pump with Belt Drive and Shaped Cam:

  • Flow Rate:  00.00 to 05.00 mL/Minute
  • Maximum Pressure:  6,000 psi
  • Material:  PEEK Fluid Path
  • Automatic Piston Wash:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Fluoropolymer Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaces part numbers LL005PFP2A, LS005PFN3A, LS005PFP2A, LS005PFP3A, LS005PFT3A

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus LS Class
Flow Rate Range and Max. Pressure Ratings*: ​0.0-5.000 mL/min (5,000 psi PEEK)
​Pulsation**: ≤1.5% @ 1 mL/min and 80:20 Water/IPA; 1,000 ps (5 mL)
Pressure Accuracy: ±50 psi
​Flow Reproducibility: 1% RSD (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL)
Flow Rate Accuracy: ±2% (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL)
​Wetted Materials: PEEK pumps may include: PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, ETFE
​Weight: ​15.5 Lbs. (7.0 Kg)
​Power: ​100-240 VAC (±10%), 50-60 Hz
​Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.
**Pulsation value with pulse dampener. For a full list of product specifications, see the datasheet.

Dimensions
