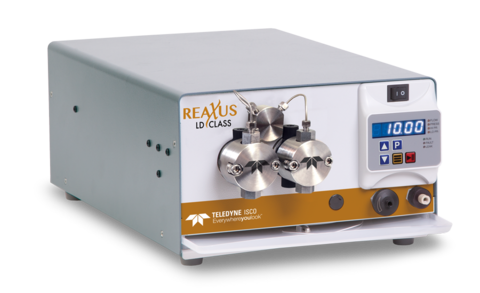

ReaXus® LD Class 100 mL Stainless Steel Dual Piston Pump

ReaXus® LD Class 100 mL Stainless Steel Dual Piston Pump

LD100SRX

$ 8,246.00
$ 8,246.00
Sale Sold out

ReaXus® LD Class 100 mL Stainless Steel Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 100.00 mL/Minute
  • Maximum Pressure:  1,000 psi
  • Material:  Stainless Steel Fluid Path
  • Automatic Piston Wash:  Yes
  • Pressure & Leak Sensors:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Stainless Steel Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaces part numbers LD100SFT2C, LD100SFT2G, LD100SFX1A, LD100SFX1C, LD100SFX2A, LD100SFX2C, LD100SNT1B, LS100JFN2C, LS100SFT1C, LS100SFT1XFTL, LS100SFT1XFTLSCE, LS100SFT3C, LS100SNT1C.

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus LD Class
Flow Rate Range and Max. Pressure Ratings*: ​ 0.0-100.0 mL/min (1,500 psi)
​Pulsation**: ≤2.0% @ 50 mL/min and 80:20 Water/IPA; 250 psi (100 mL)
Pressure Accuracy: ±50 psi
​Flow Reproducibility: 0.5% RSD (1.0 – 100.0 mL/min; 80:20 Water/IPA; 500 psi) (100 mL)
Flow Rate Accuracy: ±2% (0.5 – 100.0 mL/min; 80:20 Water/IPA; 500 psi) (100 mL)
​Wetted Materials: Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, PFA, PTFE, ETFE
Weight: 21.4 Lbs. (9.7 Kg)
Power: 100-240 VAC (±10%), 50-60 Hz
Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.​
​**Pulsation value with pulse dampener.

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.5 Inches (44.5 cm)
