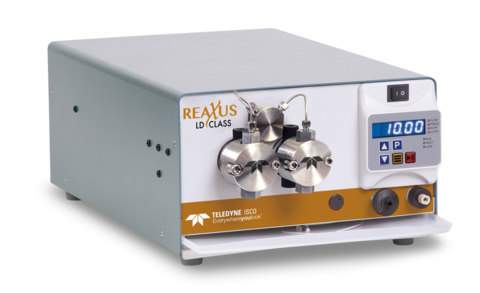

ReaXus® LD Class 36 mL Hastelloy Jacketed Dual Piston Pump

ReaXus® LD Class 36 mL Hastelloy Jacketed Dual Piston Pump

LD036KRX

$ 10,058.00
$ 10,058.00
Sale Sold out

ReaXus® LD Class 36 mL Hastelloy Jacketed Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 36.00 mL/Minute
  • Maximum Pressure:  6,000 psi
  • Material:  Hastelloy Fluid Path
  • Automatic Piston Wash:  Yes
  • Pressure & Leak Sensors:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Fluoropolymer Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaced part numbers LD012HFT3A, LD012HFT3XFTL, LD012HFT3XFTLSCE, LD012HFT4G, LD012JFX1XFTL, LD012JFX1XFTLSCE, LD012JNX1B, LD012JNX3B, LD012KFT3XFTL, LD012KFT3XFTLSCE, LD012TNN4A, LD036HFT3XFTL, LD036HFT3XFTLSCE, LD036HFT4G, LD036JFX1XFTL, LD036JFX1XFTLSCE, LD036KFT3XFTL, LS005TFT3C, LS010HFT3A, LS010HFT3XFTL, LS010HFT3XFTLSCE, LS010HFT4A, LS010JFT1XFTL, LS010JFT1XFTLSCE, LS010JFX2C, LS010KFT3XFTL, LS010KFT3XFTLSCE, LS010TFT3C, LS040HFT3XFTL, LS040HFT3XFTLSCE, LS040JFN1A, LS040JFN2A, LS040JFT1XFTL, LS040JFT1XFTLSCE, LS040KFT3XFTL, LS040KFT3XFTLSCE

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus LD Class
Flow Rate Range and Max. Pressure Ratings*: ​ 0.0-36.00 mL/min (6,000 psi)
​Pulsation**: ≤1.0% @ 4 mL/min and 80:20 Water/IPA; 1,000 psi (36 mL)
Pressure Accuracy: ±50 psi
​Flow Reproducibility: 0.5% RSD (1.00 – 36.00 mL/min; 80:20 Water/IPA; 1,000 psi) (36 mL)
Flow Rate Accuracy: ±2% (2.00 – 32.00 mL/min; 80:20 Water/IPA; 1,000 psi) (36 mL)
​Wetted Materials: Hastelloy pumps may include: Hastelloy C-276, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, PTFE, ETFE
​Weight: 21.4 Lbs. (9.7 Kg)
Power: ​100-240 VAC (±10%), 50-60 Hz
Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.​
​**Pulsation value with pulse dampener.

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.5 Inches (44.5 cm)
