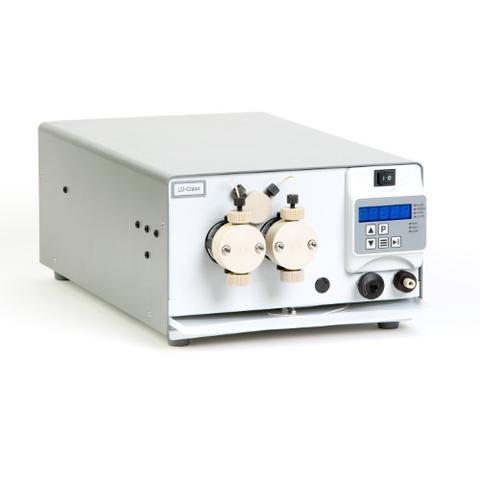

• A ReaXus pump tailored for laboratory environments, emphasizing its innovative design and practical applications in research.
1 1

ReaXus® LD Class 12 mL PEEK Dual Piston Pump

ReaXus® LD Class 12 mL PEEK Dual Piston Pump

LD012PRX

$ 8,246.00
$ 8,246.00
Sale Sold out

ReaXus® LD Class 12 mL PEEK Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 12.00 mL/Minute
  • Maximum Pressure:  6,000 psi
  • Material:  PEEK Fluid Path
  • Automatic Piston Wash:  Yes
  • Pressure & Leak Sensors:  Yes
  • Dampener:  Yes
  • Piston Seal:  Standard (Fluoropolymer Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaced part numbers LD012PFP3A, LD012PFP4D, LD012PFT1A, LD012PFT3A, LD012PFT4A, LD012PFT4D, LD012PNT1A, LD012PNT3A.

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus LD Class
Flow Rate Range and Max. Pressure Ratings*: ​0.0-12.000 mL/min (6,000 psi)
​Pulsation**: ≤2% @ 1 mL/min and 80:20 Water/IPA; 1,000 psi (12 mL)
Pressure Accuracy: ±50 psi
​Flow Reproducibility: 0.5% RSD (1.000 – 12.000 mL/min; 80:20 Water/IPA; 1,000 psi) (12 mL)
Flow Rate Accuracy: ±2% (1.000 – 12.000 mL/min; 80:20 Water/IPA; 1,000 psi) (12 mL)
​Wetted Materials: PEEK pumps may include: PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, ETFE
Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, PFA, PTFE, ETFE
Hastelloy pumps may include: Hastelloy C-276, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, PTFE, ETFE
​Weight: 21.4 Lbs. (9.7 Kg)
Power: ​100-240 VAC (±10%), 50-60 Hz
Control: RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)
*Flow Rate is dependent on solvent selection and operating pressure.​
​**Pulsation value with pulse dampener.

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.5 Inches (44.5 cm)
