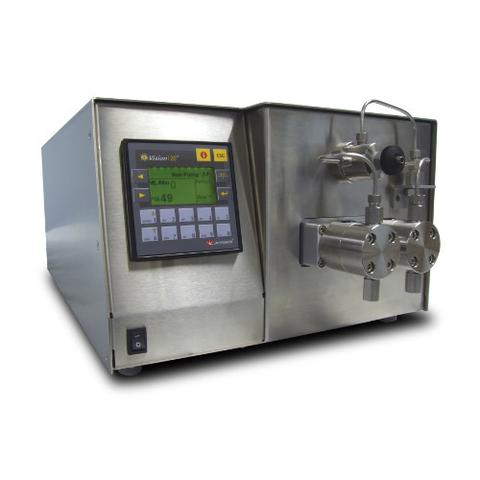

ReaXus® HF Class 300 mL Stainless Steel Pump

Reaxus® HF Class
Flow Rate Range: ​0.1 – 300.​​0 mL/min
​Flow Rate Increment:​ ​0.1 mL/min
​Flow Rate Accuracy*: ​±5% (5.0 – 300.0 mL/min; 80:20 Water/IPA; 1,000 psi)
​Flow Reproducibility: ​0.5% RSD (5.0 – 300.0 mL/min; 80:20 Water/IPA; 1,000 psi)
​Maximum Delivery Pressure:
110 VAC supply: 10,000 psi (up to 250mL/min—see chart below for pressure rating curve)
​Pressure Accuracy: ​±50 psi
​Pulsation: ​≤5.0% @ 150 mL/min and 80:20 Water/IPA; 3,000 psi
​Piston Displacement: 452 µL
​Piston Wash: ​Self-flushing pump heads – continuous wash without auxiliary pump
​Wetted Materials: ​316 Stainless Steel, Alumina, Zirconia, UHMWPE, PTFE, PEEK
​Weight: 50.0 lbs (22.7 kg)
​Power: ​100 – 240 VAC (±10%), 50 – 60 Hz, 700 W
​Front Panel: ​LCD display to monitor flow rate, pressure, and indicate parameters and alarms. Numerical keypad, Run/Stop, and Menu Navigation.
​Communication: ​RS-232 (serial communications), Run/Stop TTL
​Viscosity**: ​0.5 – 10.8 cP
​Liquid Temperature: ​0 – 82 °C
​Environment: ​Indoor use only (Pollution degree 2)
​Altitude: ​Up to 2000 m (6500 ft)
​Ambient Temperature: ​10 – 30 °C
​Humidity​: ​20 – 90% relative humidity​

Height: 8.9 Inches (22.6 cm)
Width: 13.9 Inches (35.3 cm)
Depth: 22.1 Inches (56.1 cm)
