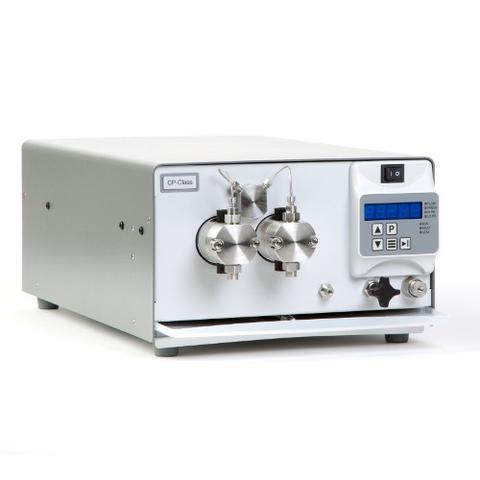

• A ReaXus pump tailored for laboratory environments, emphasizing its innovative design and practical applications in research.
1 1

ReaXus® CP Class 24 mL Stainless Steel Dual Piston Pump

ReaXus® CP Class 24 mL Stainless Steel Dual Piston Pump

CP024SRX

$ 8,937.00
$ 8,937.00
Sale Sold out

ReaXus® CP Class 24 mL Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 24.00 mL/Minute
  • Maximum Pressure:  10,000 psi
  • Material:  Stainless Steel Fluid Path
  • Automatic Piston Wash:  No
  • Pressure & Leak Sensors:  Yes
  • Dampener:  No
  • Constant Pressure Algorithm
  • Piston Seal:  Standard (Stainless Steel Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaced part numbers CP012SFX1A, CP012SFY1A, CP012SNX1A, CP012SNY1A, CP012SNY2A, CP024SFX1A, CP024SFX1C, CP024SFX2A, CP024SNX1A, LD012SFT1XPTL, LD012SFT1XPTLSCE, LD036SFT1XPTL, LD036SFT1XPTLSCE, LS010SFT1XPTL, LS010SFT1XPTLSCE, LS040SFT1XPTL, LS040SFT1XPTLSCE

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

ReaXus CP Class
Flow Rate Range and Max. Pressure Ratings*:
0.01-24.00 mL/min (10,000 psi)
Pressure Accuracy: ±2% of full-scale pressure
Wetted Materials:
Stainless Steel pumps may include: Incoloy A-286, 316 Stainless Steel, Silicon Carbide, Synthetic Ruby, Sapphire, Zirconia, ATZ, UHMWPE, PEEK, FFKM, PFA, PTFE, ETFE
Weight: 30 Lbs. (13.6 Kg)
Power: 100 – 240 VAC (±10%), 50 – 60 Hz, 75 W

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.5 Inches (44.5 cm)
