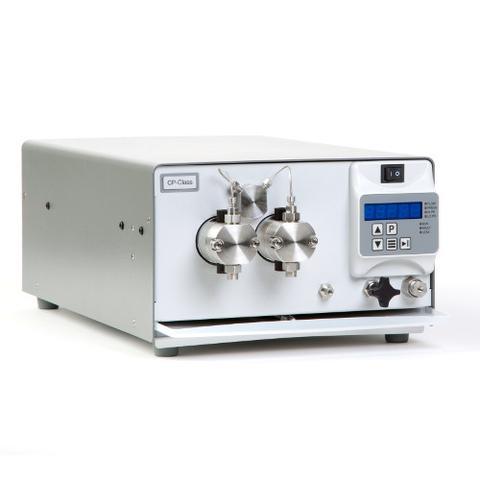

• A ReaXus pump tailored for laboratory environments, emphasizing its innovative design and practical applications in research.
1 1

ReaXus® CP Class 24 mL Hastelloy Jacketed Dual Piston Pump

ReaXus® CP Class 24 mL Hastelloy Jacketed Dual Piston Pump

CP024KRX

$ 10,923.00
$ 10,923.00
Sale Sold out

ReaXus® CP Class 24 mL Hastelloy Jacketed Dual Piston Pump with Belt Drive and Shaped Cams:

  • Flow Rate:  00.00 to 24.00 mL/Minute
  • Maximum Pressure:  10,000 psi
  • Material:  Hastelloy Fluid Path
  • Automatic Piston Wash:  No
  • Pressure & Leak Sensors:  Yes
  • Dampener:  No
  • Constant Pressure Algorithm
  • Piston Seal:  Standard (Stainless Steel Energizer)
  • Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing

Note:  This replaced part numbers LD012HFT3XPTL, LD012HFT3XPTLSCE, LD012JFX1XPTL, LD012JFX1XPTLSCE, LD012KFT3XPTL, LD012KFT3XPTLSCE, LD036HFT3XPTL, LD036HFT3XPTLSCE, LD036JFX1XPTL, LD036JFX1XPTLSCE, LD036KFT3XPTL, LD036KFT3XPTLSCE, LS010HFT3XPTL, LS010HFT3XPTLSCE, LS010JFT1XPTL, LS010JFT1XPTLSCE, LS010KFT3XPTL, LS010KFT3XPTLSCE, LS040HFT3XPTL, LS040HFT3XPTLSCE, LS040JFT1XPTL, LS040JFT1XPTLSCE, LS040KFT3XPTL, LS040KFT3XPTLSCE, LS100HFT3XFTLSCE

Estimated Shipment Time (After Receipt of Order):  21 Day(s)

Specifications

ReaXus CP Class
Flow Rate Range and Max. Pressure Ratings*:
0.01-24.00 mL/min (10,000 psi)
Pressure Accuracy: ±2% of full-scale pressure
Wetted Materials:
Hastelloy pumps: Hastelloy C-276, Synthetic Ruby, Sapphire, UHMWPE, PEEK, FFKM, PFA, PTFE, ETFE
Weight: 30 Lbs. (13.6 Kg)
Power: 100 – 240 VAC (±10%), 50 – 60 Hz, 75 W

Dimensions

Height: 6.4 Inches (16.3 cm)
Width: 9.9 Inches (25.1 cm)
Depth: 17.5 Inches (44.5 cm)
Hastelloy Jacketed Heads add 0.7 Inch (1.7 cm) to depth of pump.
