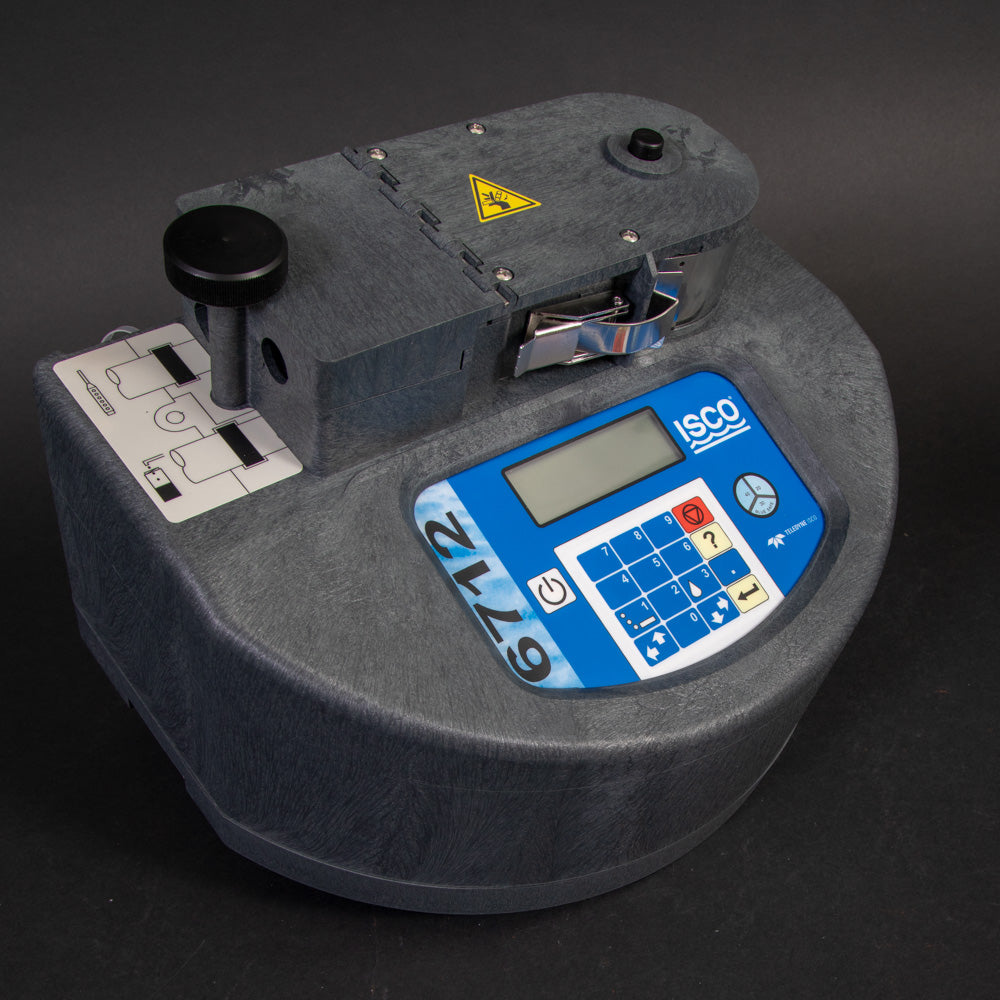

• A small electronic device featuring a digital display, showcasing various information on its screen.

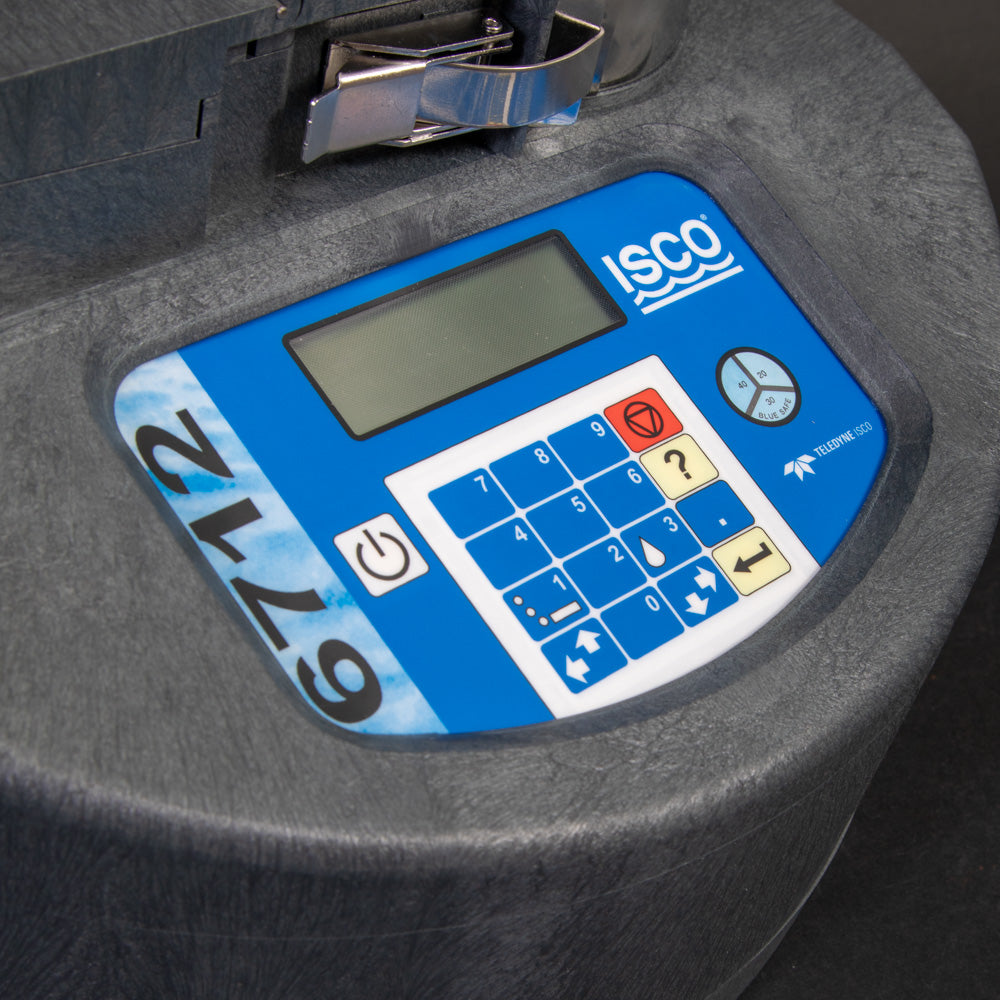

  • A small electronic device featuring a digital display, showcasing various information on its screen.

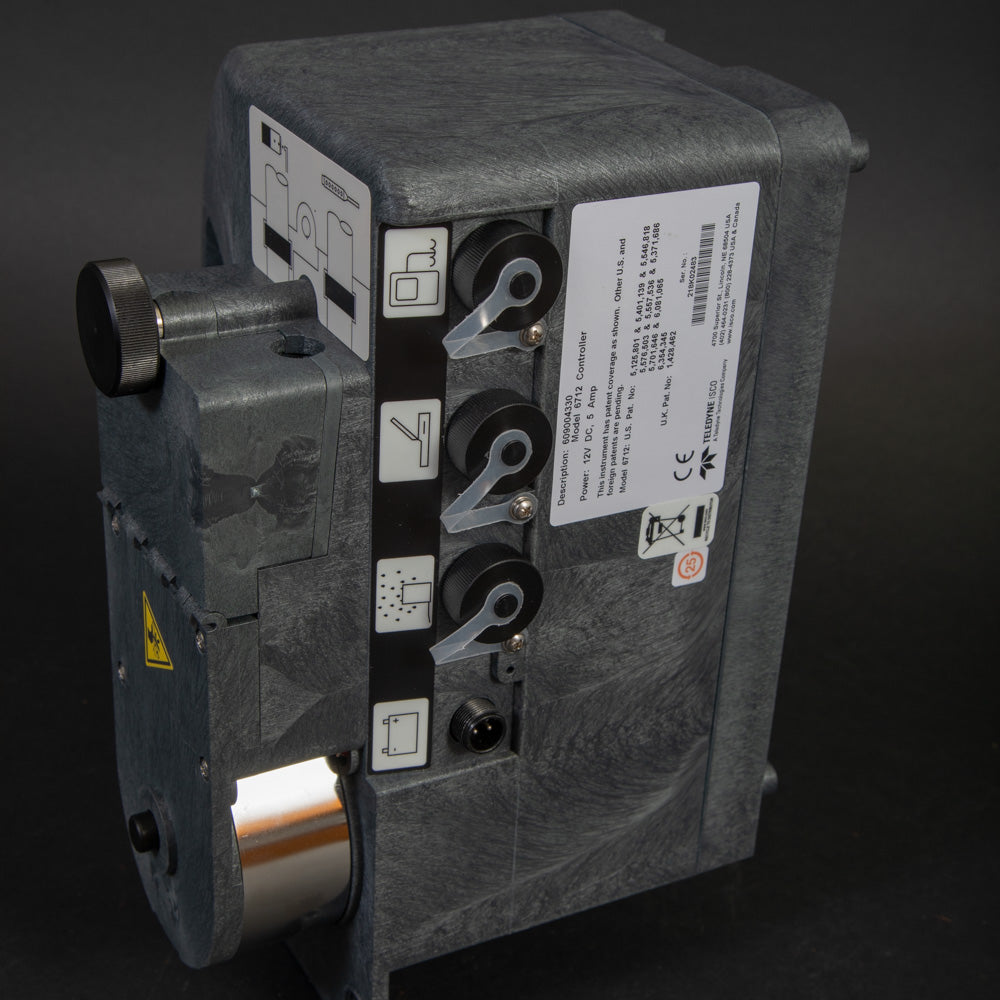

  • Close-up of a rectangular black box against a solid black background, highlighting its texture and reflective surface.

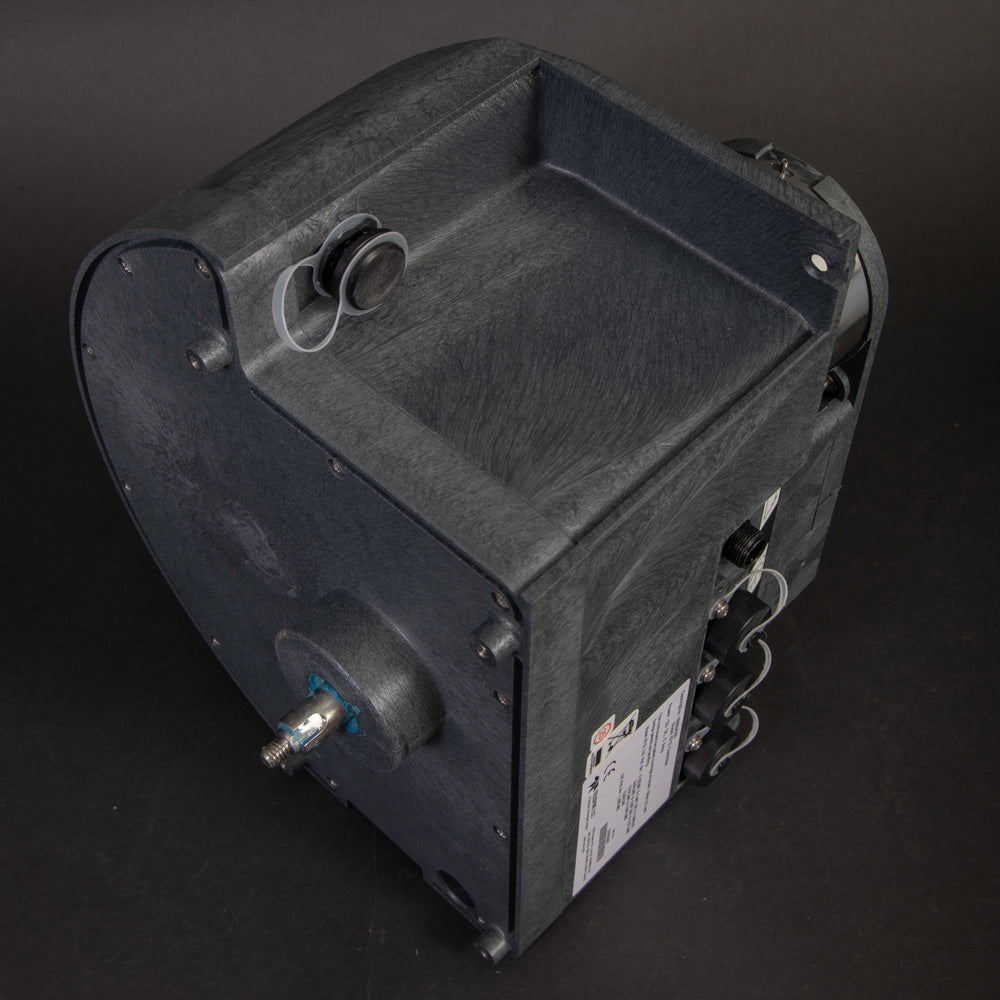

  • Bottom of a controller displayed on a black surface, emphasizing its size and engineering features.

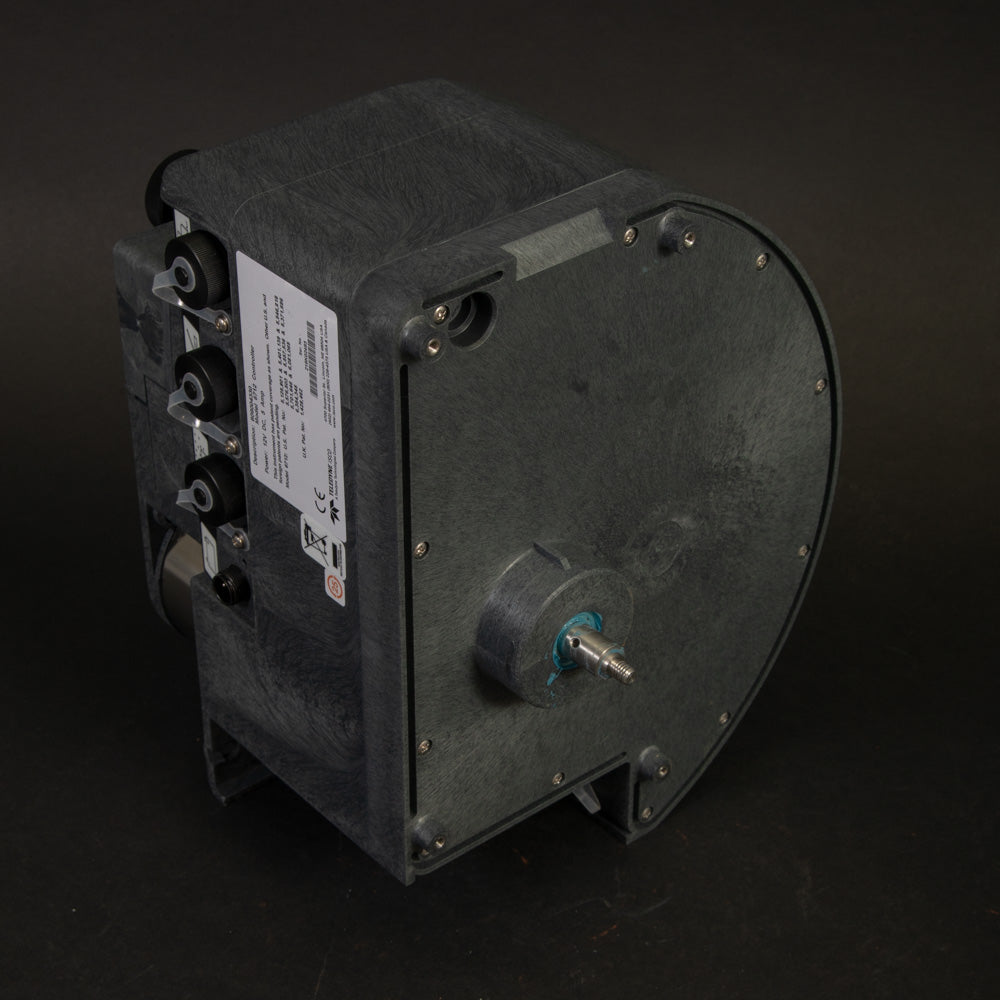

  • Close-up image of a black machine on a black background, showcasing its design and texture.

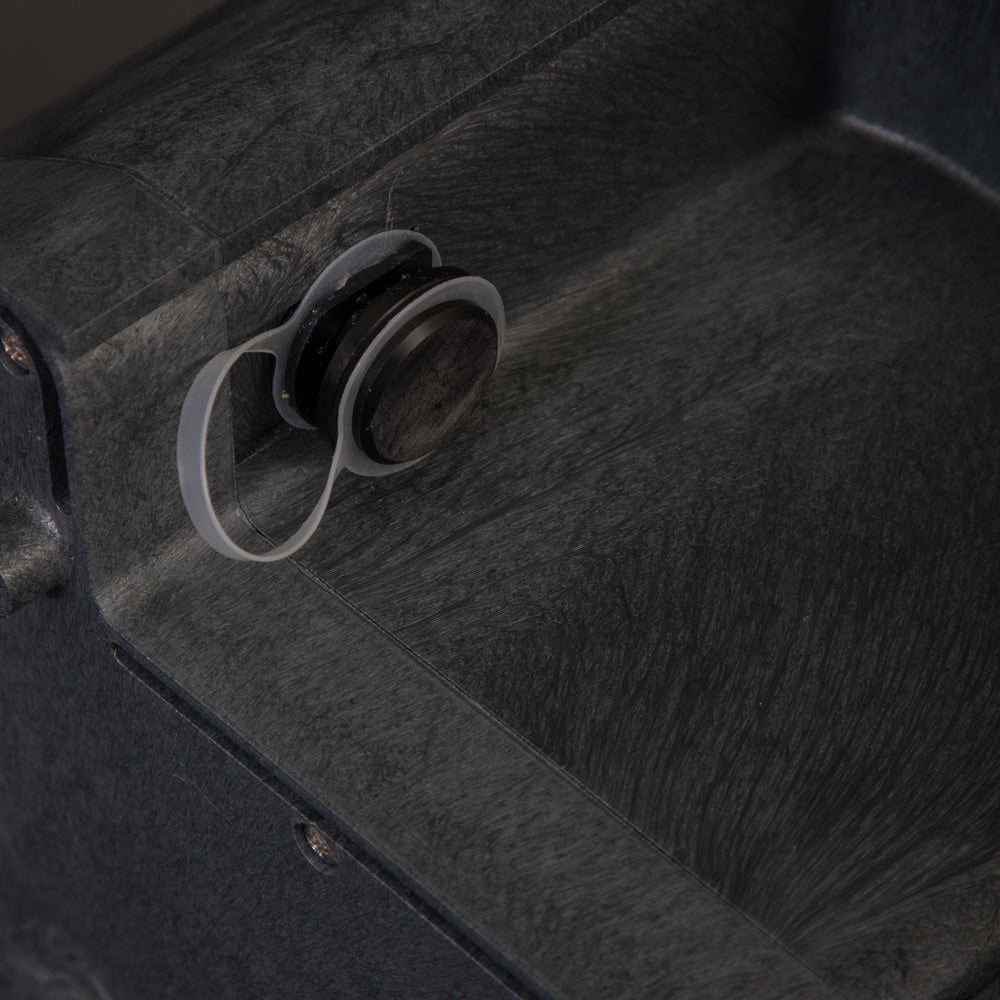

  • Close-up image of connection point on a black background, showcasing its design and texture.
1 6

Controller for 6712 / 6712C / 6712FR Sampler

Controller for 6712 / 6712C / 6712FR Sampler

686710074

$ 5,708.00
$ 5,708.00
Sale Sold out

Controller used on 6712, 6712C and 6712FR Samplers.  Includes two pump tubes.

Note:  This item is also the direct replacement for part number 609004330.

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Specifications

Weight with Pump Tube: 13.2 Lbs. (6.0 Kg)
Operational Temperature Range: 32 degrees F to 120 degrees F (0 degrees C to 49 degrees C)
Storage Temperature Range: 0 degrees F to 140 degrees F (-18 degrees C to 60 degrees C)
Maximum Altitude: 2,000 meters
Installation Category: 2
Humidity: 95% RH Maximum
Enclosure: NEMA 4X and 6
Pump: IP17
Enclosure: IP67
Maximum Suction Head: 28 Ft. (8.5 m)
Controller Internal Battery: 5 years minimum
Real Time Clock Accuracy: 1 Minute Per Month
Program Memory: Nonvolatile programmable Flash
Sampler Power Requirements:
Nominal 12 VDC
Operational: 11 to 13 VDC
Absolute Maximum: 14.4 VDC

Dimensions

Length: 10.3 Inches (26.0 cm)
Width: 12.5 Inches (31.7 cm)
Height: 10.0 Inches (25.4 cm)
