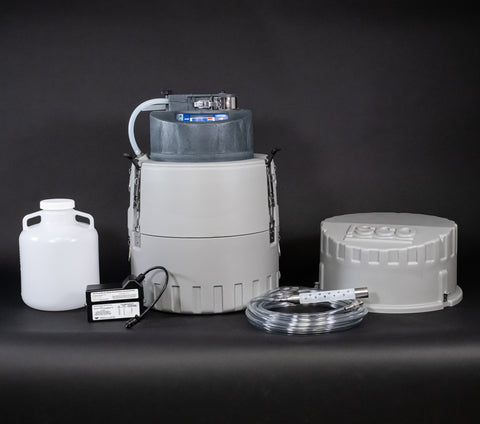

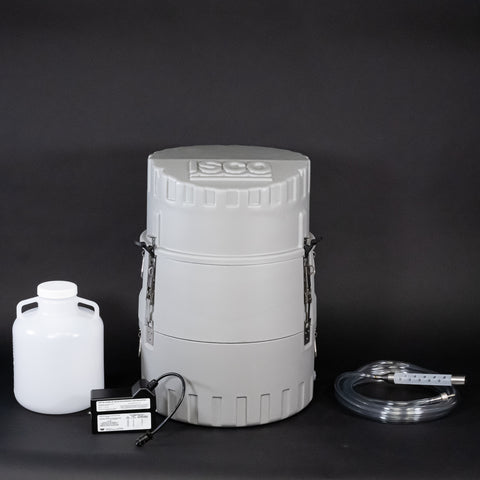

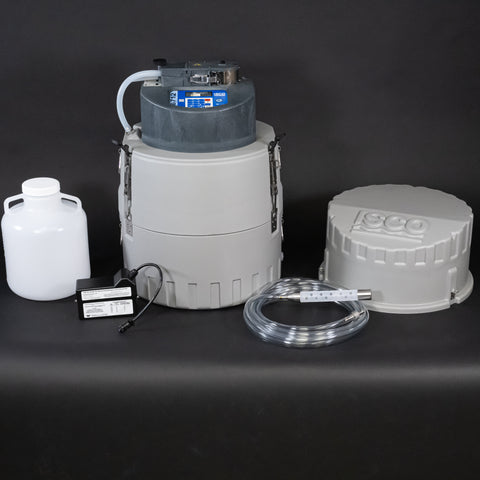

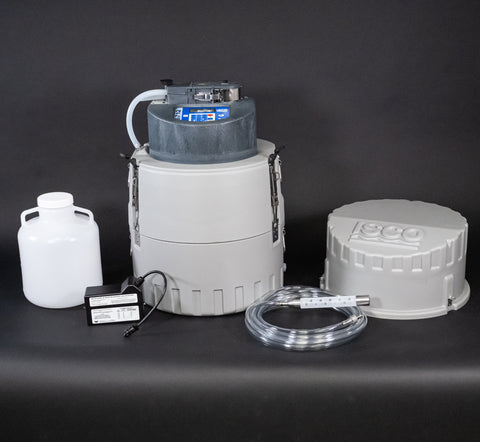

• Portable sampler, battery, bottle with cap and suction line
  • Portable sampler, battery, bottle with cap and suction line
  • Portable sampler, battery, bottle with cap and suction line
  • Portable sampler, battery, bottle with cap and suction line
  • Portable sampler, battery, bottle with cap and suction line
  • Portable sampler with cover removed
  • Portable sampler with cover removed, suction line

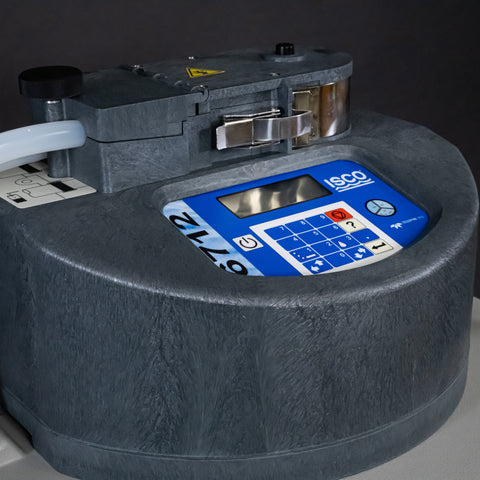

  • Sampler controller
  • Sampler controller
  • Sampler controller
  • Portable sampler with cover removed, suction line
  • Sampler controller
  • Portable sampler with cover removed

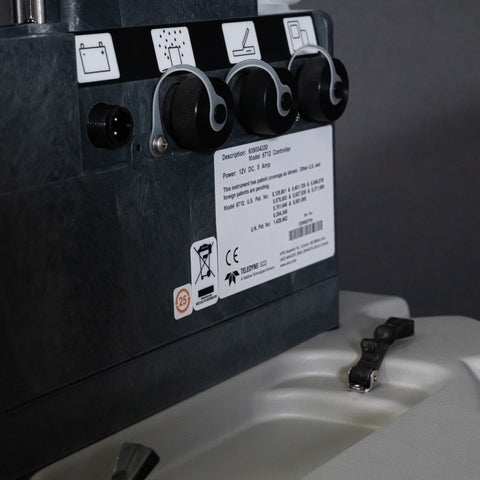

  • Back of sampler controller
  • Portable sampler with cover removed
  • Sampler controller
  • Sampler controller

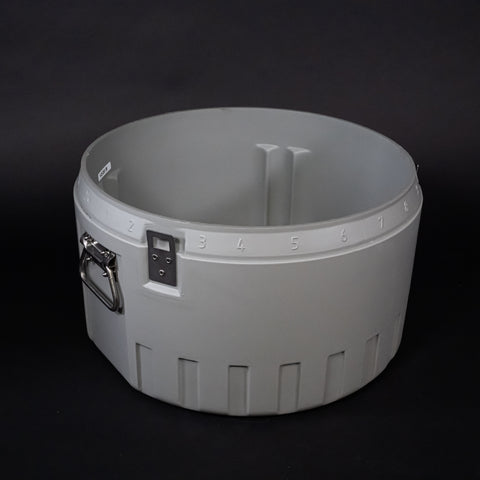

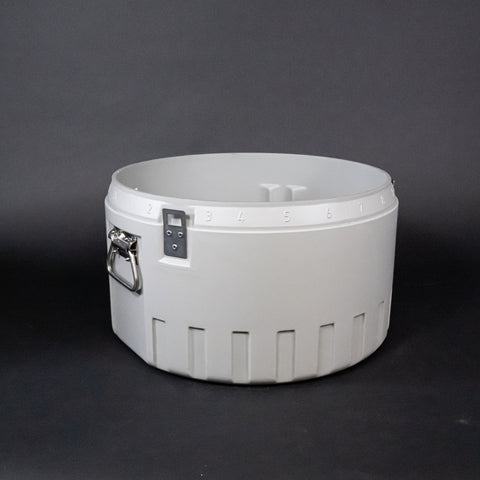

  • Sampler base
  • Sampler base
  • Sampler base

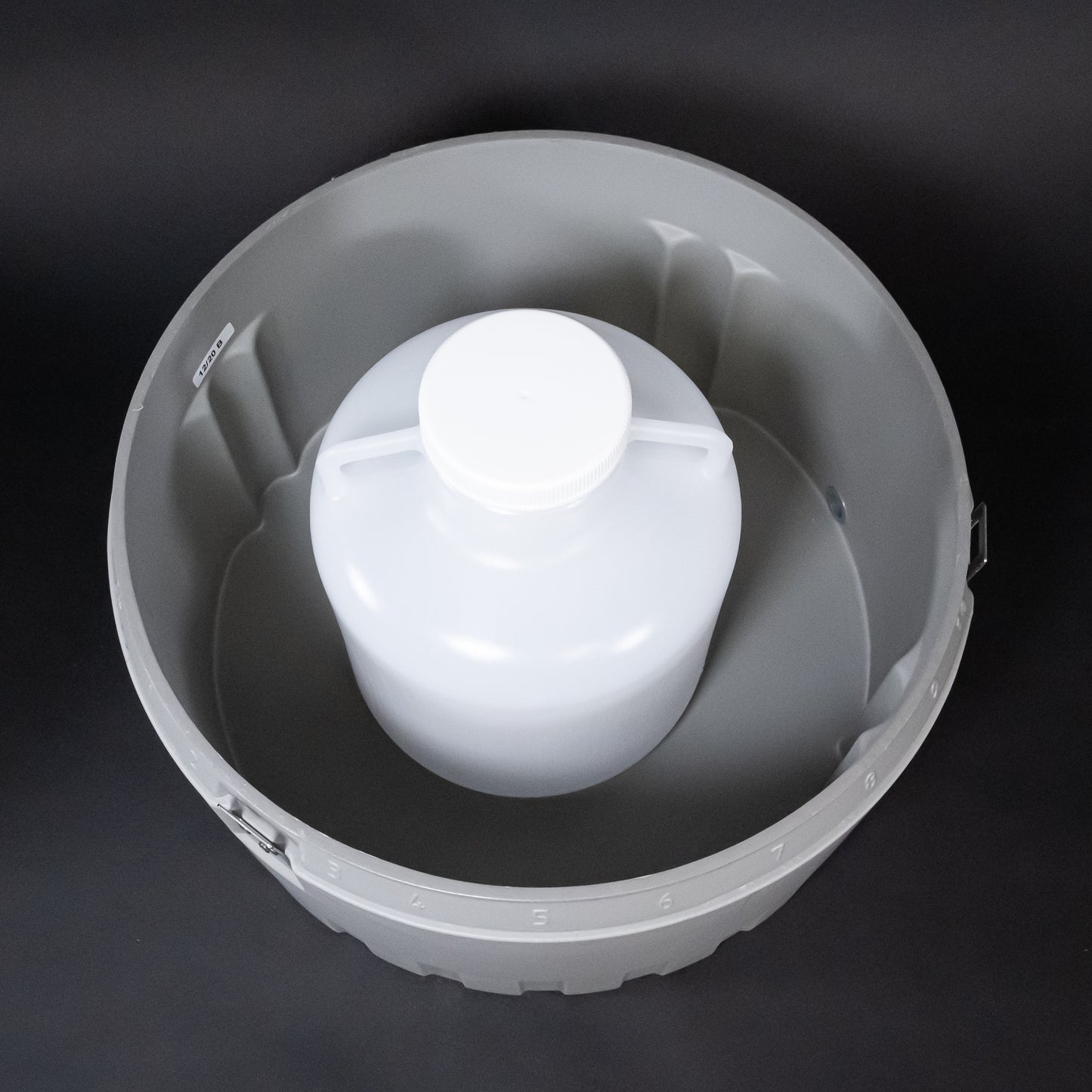

  • Sampler base, bottle with cap
  • Sampler base, bottle with cap
1 22

Model 6712 Full Size Sampler Package (1 Polyethylene 2.5 Gallon Bottle)

Model 6712 Full Size Sampler Package (1 Polyethylene 2.5 Gallon Bottle)

686710003

$ 6,292.00
$ 6,292.00
Sale Sold out

Model 6712 Full Size Sampler Package.  Includes the following:

  • Model 6712 Full-Size Portable Sampler.  Includes controller, top cover, center section, base, distributor arm and two pump tubes.
  • Single bottle configuration.  Includes one polyethylene 2.5 Gallon (10 Liter) round bottle with cap, tube guide and two discharge tubes.
  • Vinyl suction line with standard weighted polypropylene strainer (3/8 Inch I.D. x 25 ft.).  Includes tubing coupler.
  • Model 946 Lead Acid Battery.  Rechargeable, 12 VDC, 6.5 Amp Hours.  Requires charger if not in your current inventory.  Order Model 963 Battery Charger.

Estimated Shipment Time (After Receipt of Order):  28 Day(s)

Dimensions

--- Model 6712 Full Size Sampler ---
Dimensions (Diameter x Height): 20 x 27 Inches (​68.6 x 50.7 cm)
​Weight (Dry; Without battery): 32 lbs. (15 Kg)

Specifications

--- Model 6712 Sampler General ---
Materials: Plastic with UV-resistant gel coat
Power Required: 12 VDC
--- Pump ---
Intake purge:​ Adjustable air purge before and after each sample.
Tubing life indicator: Provides a warning to change pump tubing.
Intake suction tubing: Vinyl or PTFE-lined; 3/8 inch (1 cm) ID; 3 to 99 feet (1 to 30 m) Length
Pump tubing life: Typically 1,000,000 pump counts
Maximum lift: 28 feet (8.5 m)
Repeatability: Typical ±5 ml or ±5% of the average volume in a set
Typical line velocity @ Head height: 3.0 ft./s @ 3 ft.; 2.9 ft./s @ 10 ft.; 2.7 ft./s @ 15 ft. (0.91 m/s @ 0.9 m; 0.87 m/s @ 3.1 m; 0.83 m/s @ 4.6 m)
Liquid presence detector: Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights.
--- Controller ---
Weight: 13 lbs. (​5.9 Kg)
​Dimensions (HxWxD): 10.3 x 12.5 x 10 Inches (​26 x 31.7 x 25.4 cm)
​Operational Temperature: 32 to 120° F (​0 to 49° C)
​Enclosure Rating: NEMA 4X, 6 IP67
​Program Memory: ​Non-volatile ROM
​Flow Meter Signal Input: 5 to 15 VDC pulse or 25 ms isolated contact closure
​Number of Composite Samples: Programmable from 1 to 999 samples
​Clock Accuracy: Typically ​1 minute per month for real time clock
--- Software ---
Sample Frequency: ​1 minute to 99 hours 59 minutes (1 minute increments); non-uniform times in minutes or clock times 1 to 9,999 flow pulses
​Sampling Modes: Uniform time, non-uniform time, event, flow (flow mode is controlled by external flow meter pulses)
​Programmable Sample Volumes: ​10 to 9,990 mL (1 mL increments)
​Sample Retries: ​If no sample is detected, up to 3 attempts (user-selectable)
​Rinse Cycles: ​Automatic rinsing of suction line up to 3 rinses for each sample collection
​Program Storage: 5 sampling programs
​Sampling Stop/Resume: Up to 24 real time/date sample Stop/Resume commands
