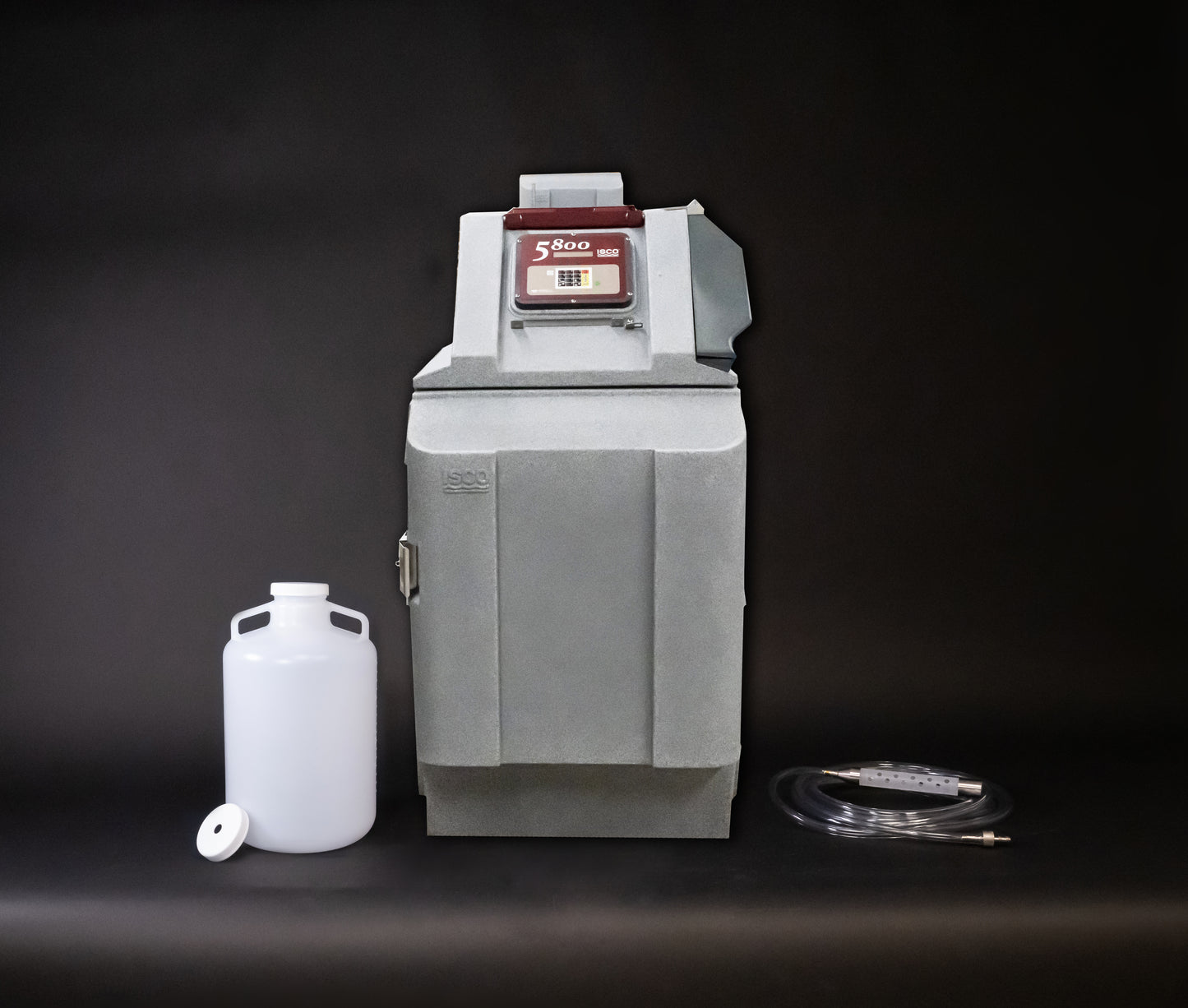

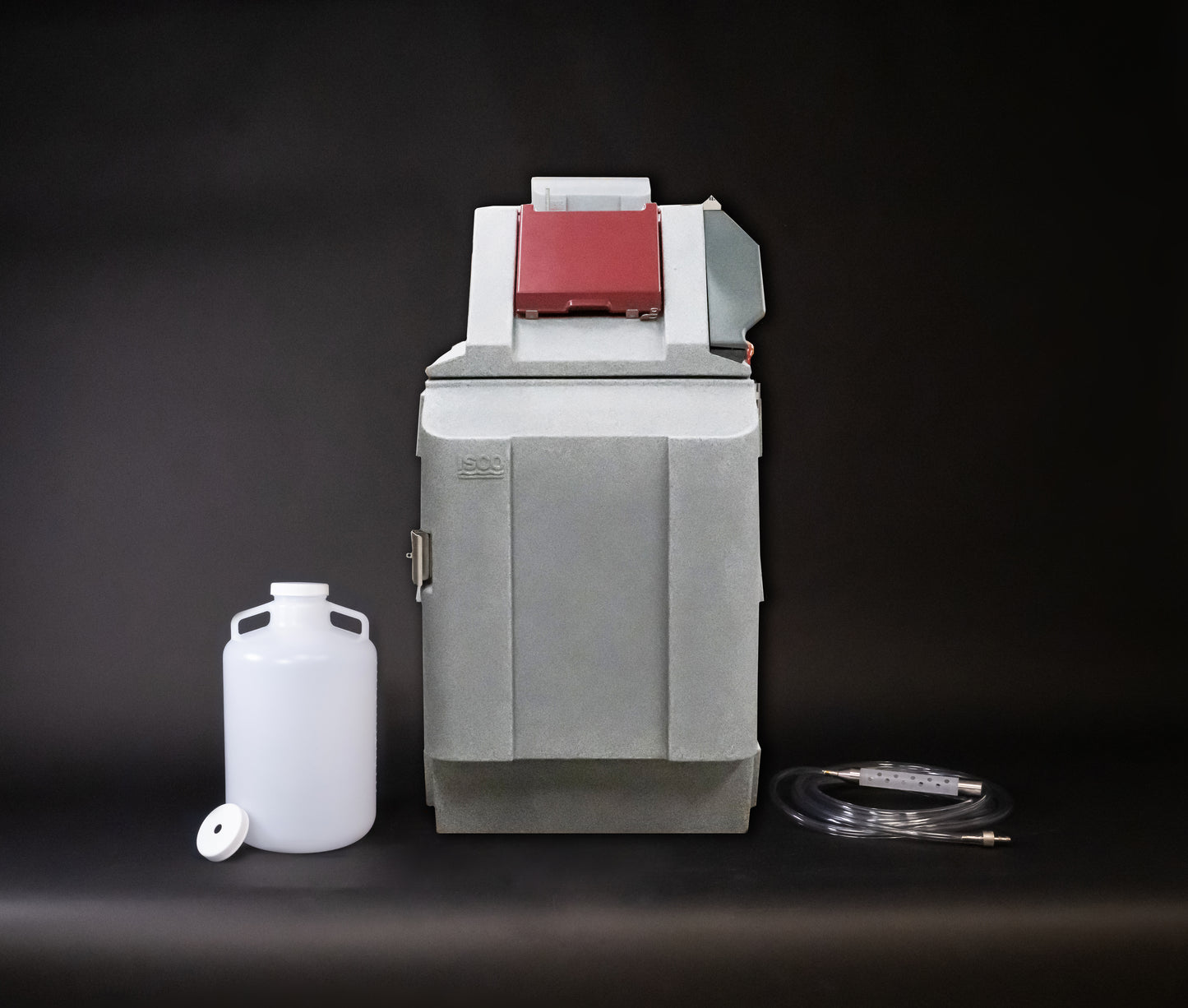

Model 5800 Refrigerated Sampler Package (1 Polyethylene 5.5 Gallon Bottle)

Model 5800 Sampler
Dimensions: ​52 x 29 x 33 inches (132 x 74 x 84 cm)
​Weight: ​195 lbs. (88.5 kg)

'--- Model 5800 Sampler General ---
Power Requirements: 115 VAC, 60 Hz
​Operational Temperature: ​-20° to 120° F (-29° to 49° C)
​Materials (refrigerator body): ​Linear low-density polyethylene
--- Pump ---
Pump Tubing Life: Typically 1,000,000 pump counts
Maximum Suction Lift: 28 ft. (8.5 m)
Typical Repeatability: ±5 mL or ± of the average volume in a seat, whichever is great, at lifts up to 25 ft.
Typical Line Velocity at Head Height:
3 ft. (0.9 m) head height: 3.0 ft./s (0.9 m/s)
10 ft. (3 m) head height: 2.9 ft./s (0.88 m/s)
15 ft. (4.6 m) head height: 2.7 ft./s (0.82 m/s)
Liquid Presence Detector:
Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights.
--- Controller ---
Enclosure Rating: NEMA 4X, 6 (IP67)
Program Memory: Non-volatile ROM
Flow Meter Signal Inputs:
5 to 15 volt DC pulse or 25 ms isolated contact closure for Teledyne ISCO flow meters, 4-20 mA input or non-Teledyne ISCO flow meters.
Digital Alarms: 4 programmable outputs; 5V, 100 mA
Number of composite samples: Programmable from 1 to 999 samples
--- Software ---
Sample Frequency: 1 minute to 99 hours 59 minutes in 1-minute increments 1 to 9,999 flow pulses
Sampling Modes:
Constant time - constant volume
Constant time - variable volume
Variable time - constant volume
(flow modes are controlled by external flow meter signal)
Programmable Sample Volumes: 10 to 9,990 mL in 1 mL increments
Sample Retries: If no sample is detected, up to 3 attempts; user selectable
Rinse Cycles: Automatic rinsing of suction line up to 3 rinses for each sample collection
Controller Diagnostics: Test for RAM, ROM, pump, display, and electric components
