Scissors Ring For 16 To 80 Inch Diameter Pipe

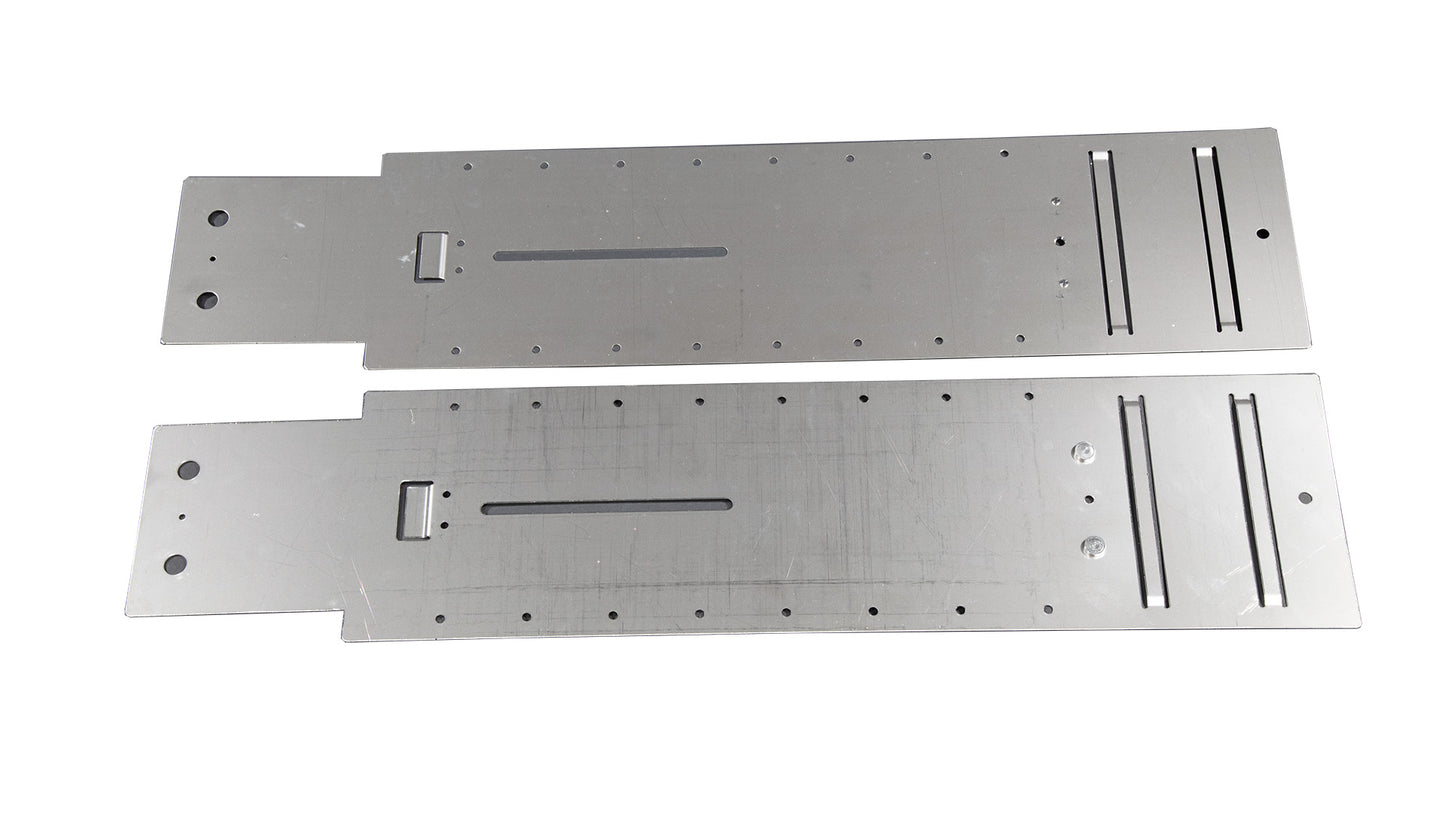

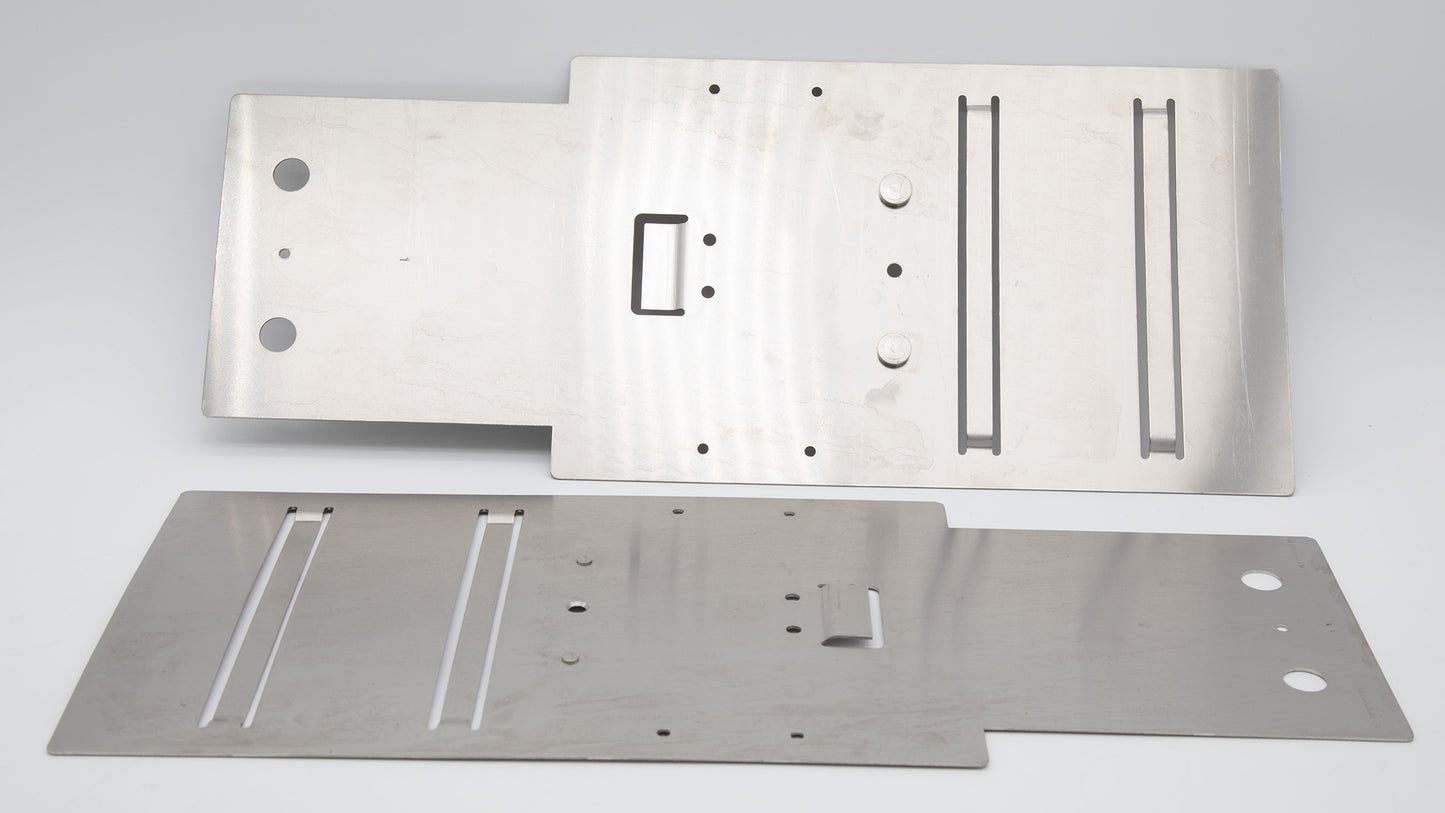

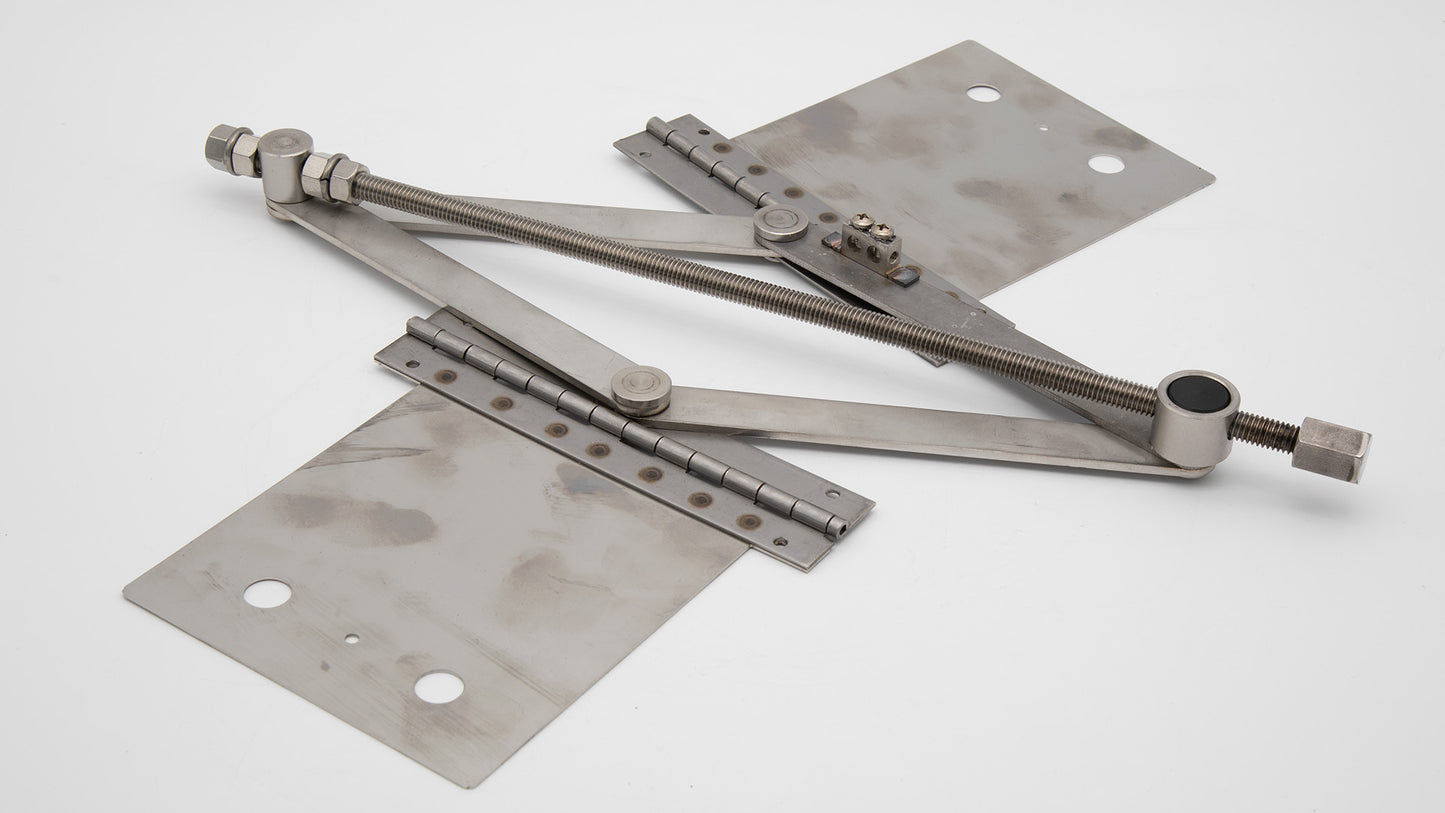

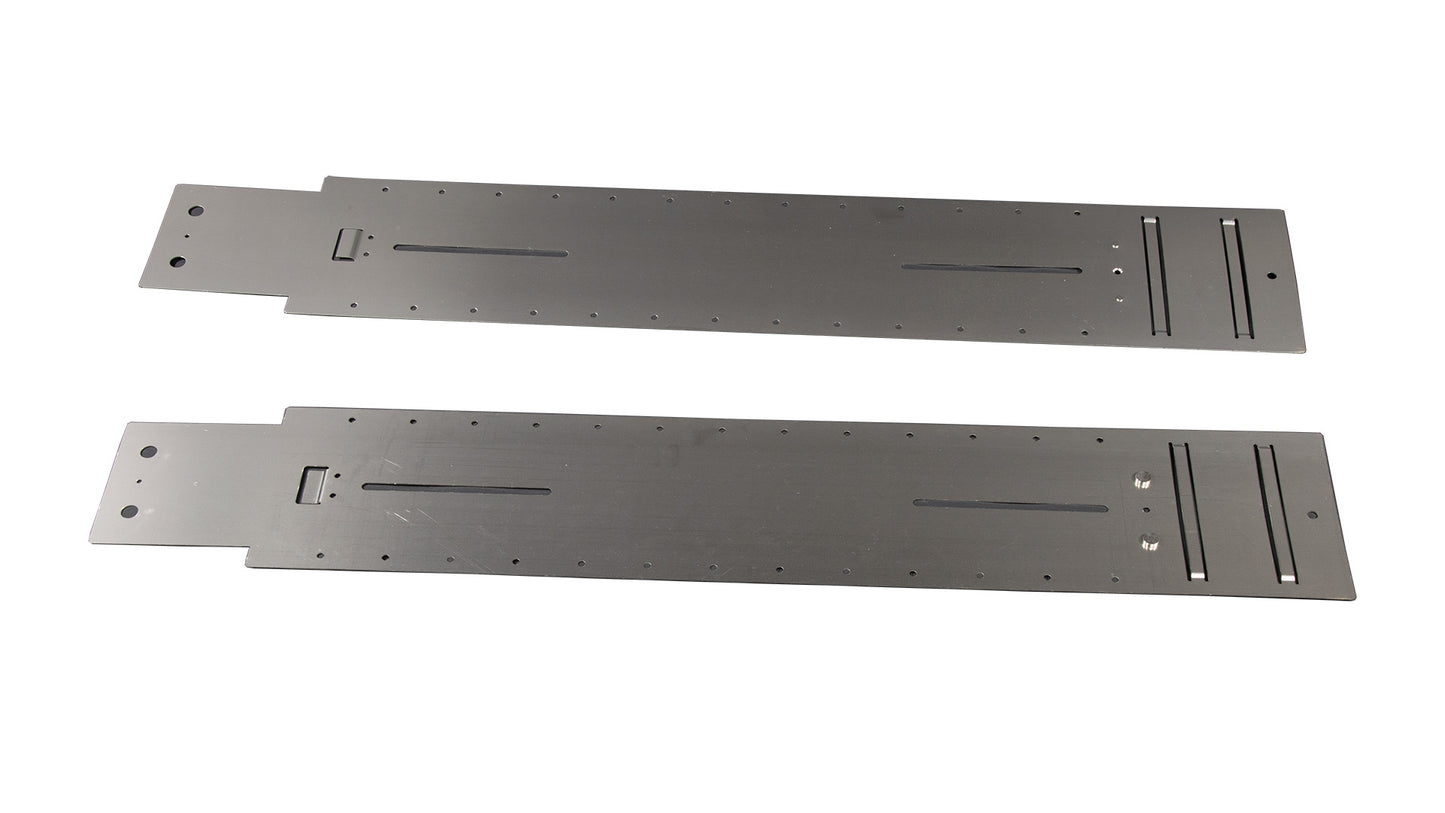

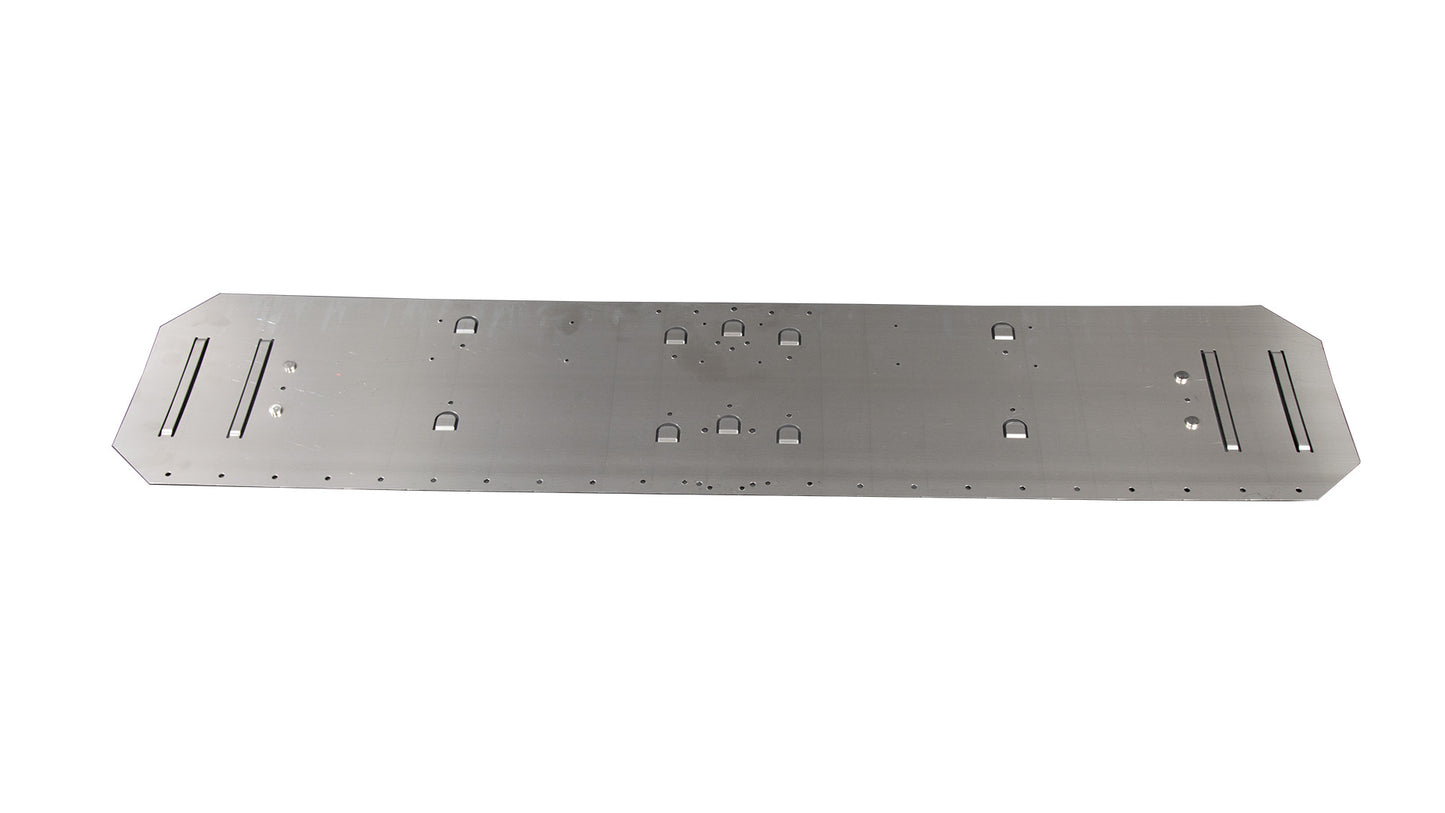

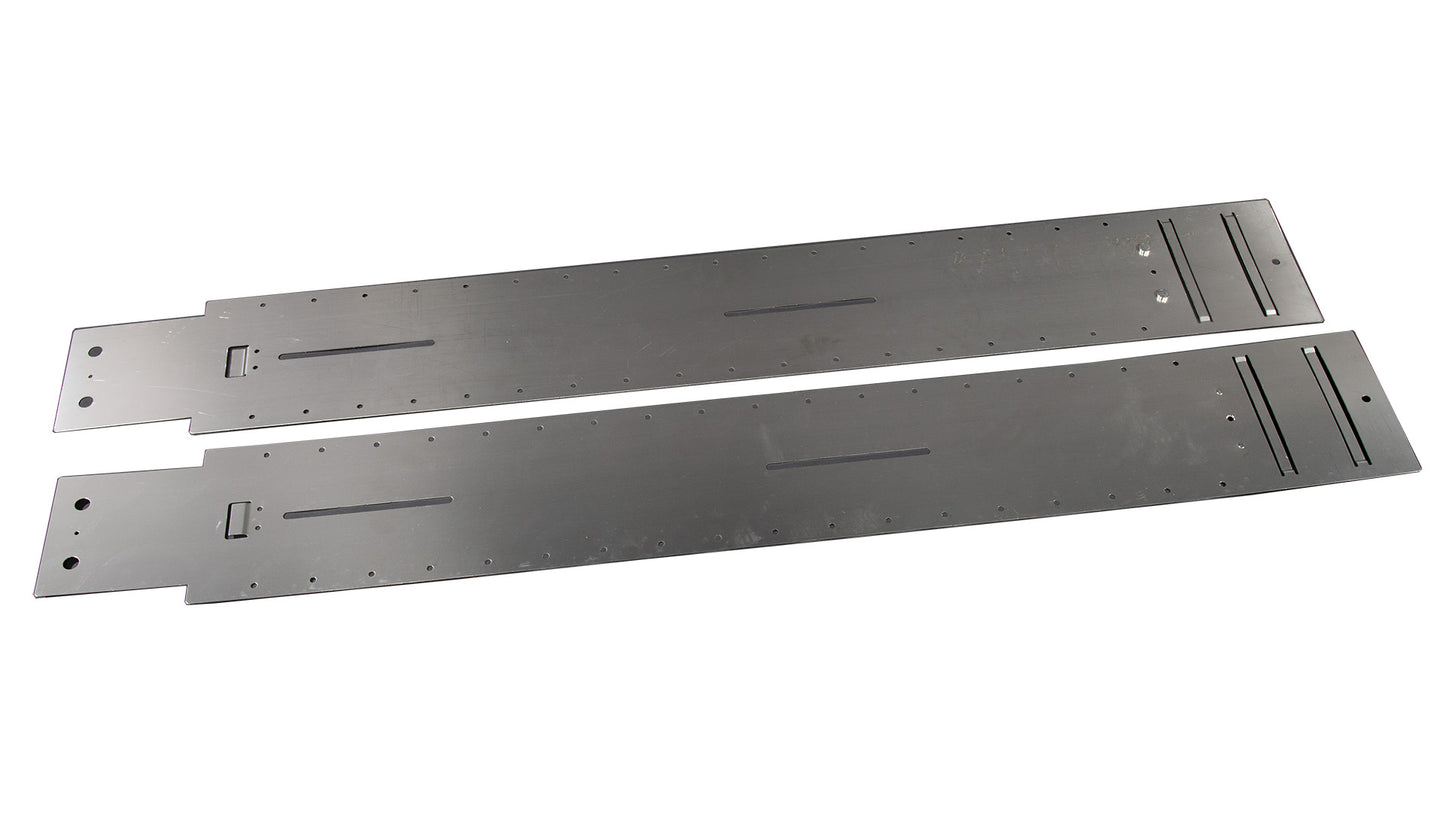

Scissors Ring for 16 to 80 inch diameter pipe. Used to install ISCO sensors. Includes base section, scissors mechanism, one pair of 7.5 inch extensions, one pair of 20 inch extensions, one pair of 30 inch extensions and one pair of 40 inch extensions. The base section of the scissors ring will accommodate up to five of our sensor carriers and can be used to mount up to five of the sensor carriers or standard area velocity sensors in a channel.
Up to six low profile area velocity sensors can be attached directly to the base section of the scissors ring. The base section will also accept ADFM and accQpulse sensors. A carrier to attach the low profile area/velocity sensor is also available if desired.
Available sensor carriers:
|Sensor carrier for attaching submerged probe|
|Sensor carrier for attaching bubble line|
|Sensor carrier for attaching pH probe|
|Sensor carrier for attaching low profile area velocity probe|
This item has a lead time of 12-16 days
