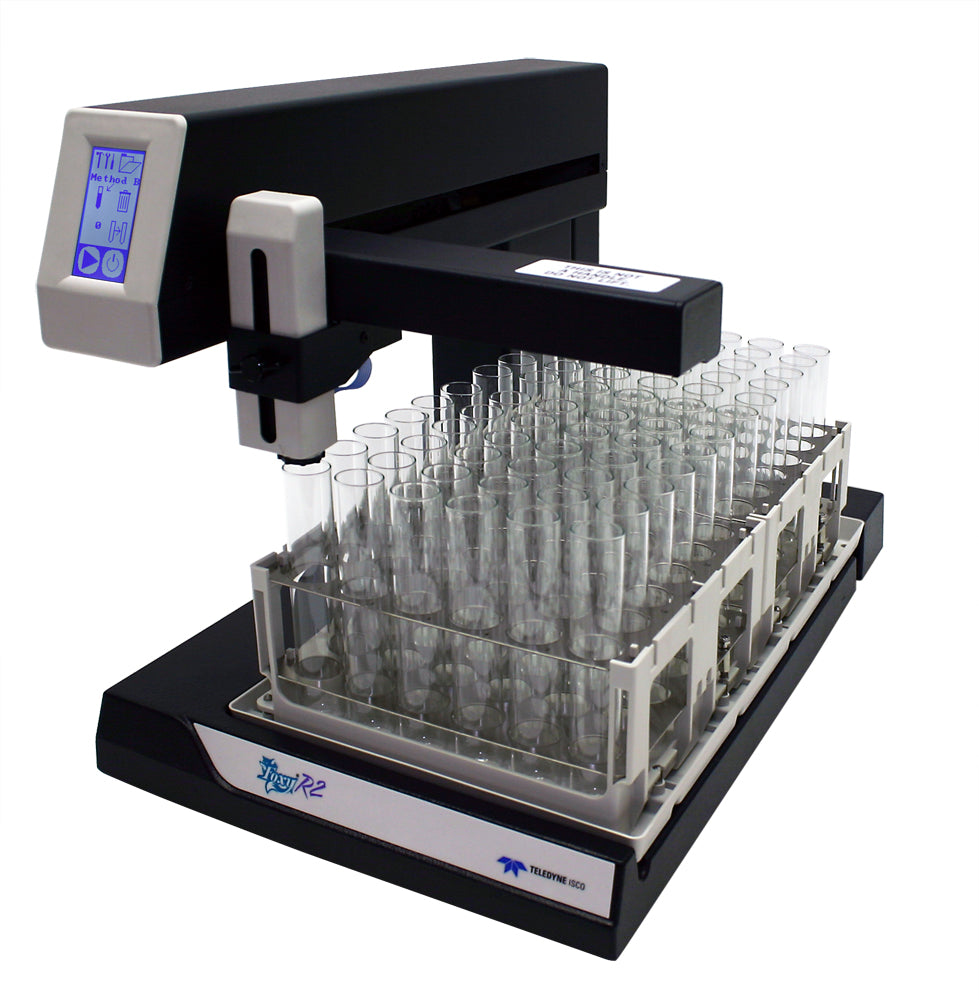

High Flow Foxy® R2 Fraction Collector with Diverter Valve

Name: High Flow Foxy® R2 Fraction Collector with Diverter Valve
Brand: Teledyne ISCO
SKU: 682130007
Price: 11524.0 USD
Availability: InStock

SKU:682130007

$ 11,524.00

Sale Sold out

Choose A Rack Rack for 16 mm test tubes (100) (#602137151) Rack for 18 mm test tubes (72) (#602137152) Rack for 25 mm test tubes (36) (#602137153) Rack for 1.5 mL microcentrifuge tubes (60) (#602137154) Rack for 28 mm diameter scintillation vials (36) (#602137156) Rack for 50 mL centrifuge tubes (36) (#602137157) Rack holds (2) 96-well microplates (#602137159) Racks for 13 mm test tubes (144) (#602137150)

Product variants

Quantity

High Flow Foxy® R2 Fraction Collector with diverter valve. Includes compression fittings for 1/4 inch O.D. tubing. Maximum flow rate up to 1 L/minute. RFID sensors for fast and error free setup. Standard 1/8 inch OD (0.062 inch I.D.) tubing included for collection up to 125 mL/minute.

Estimated Shipment Time (After Receipt of Order): 21 Day(s)

Dimensions

Dimensions (WxHxD) 12.25 x 15.5 x 21.0 Inches (31.1 x 39.4 x 53.3 cm)
Weight: 22.9 lbs. (10.4 Kg)

Specifications

Inlet Tubing and Flow Rates: 1/4 Inch O.D. (0.125 Inch I.D.), up to 1 L/minute
Maximum Tube Height: 180 mm
Racks: 2, with RFID
Maximum Tube Quantity: 288 using 12/13 mm tubes
Construction Materials:
Racks - Stainless steel and polypropylene
Funnel Racks - ECTFE (Halar®) or ETFE (Tefzel™) funnels
Diverter Valve - PEEK and FFKM (fluoroelastomer)
Construction - Cast Aluminum
Drip Tray - Polypropylene
Drop Former - PEEK
Solvent Compatibility: Aqueous and Organic
Test Tube Time Change: 0.10 - 0.58 seconds (dependent on collection vessel tube advance speed)
Memory: Eight (8) methods
Collection Modes:
Time - 00:00:01 to 99:59:59 in 1 second intervals
Drop - 1 to 999 drops per fraction
Volume - Up to 999 units
Peak Detection: Slope, Threshold, Three Time Windows or combination of any of the above listed collection modes
System Control: Front panel touchscreen, Ethernet or RS-232
Inputs: Pump counter, external peak, inject, tube advance: +3.3 to 5 VDC or contact closure, active low, 30 milliseconds minimum, 5 VDC maximum. Analog peak voltage: 0 to 1.0 V nominal, -1.2 to + 1.2 V usable, -5 to +5 V maximum.
Outputs: Pump pause/stop and event (tube change), 300 milliseconds: open collector, active low, 15 VDC/100 mA maximum.
Automatic Shut-Off: Rack full, last tube, end of time window or external signal.
Security Valve (2-way): N/A
Diverter Valve (3-way): Included
Valve Pressure Rating: 0-28 PS
Power Requirements: 100 - 240 VAC, 50-60 Hz, 1 ampere maximum Includes one IEC power cord supplied for regional AC power.
Certification: CE, CSA
