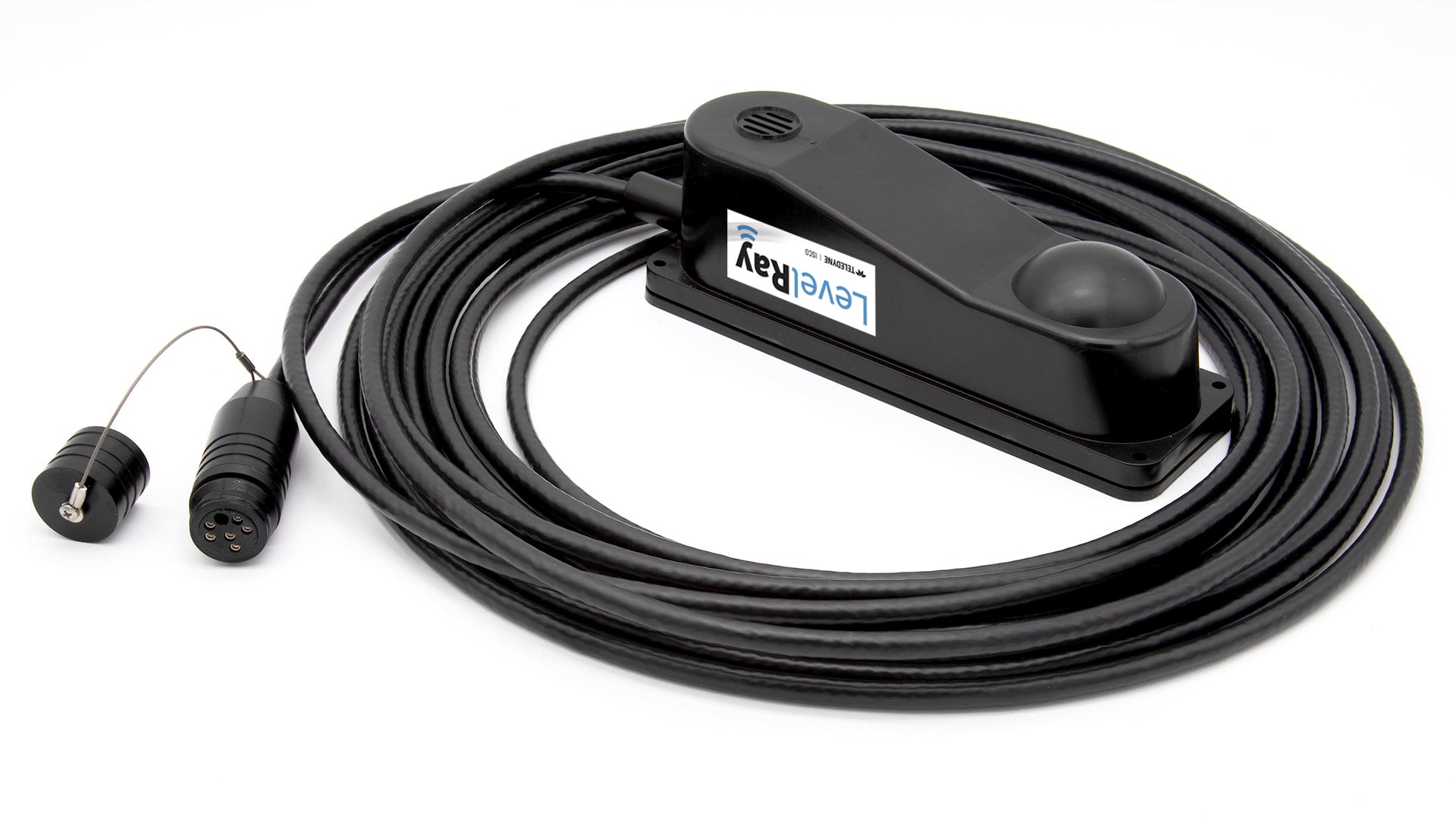

LevelRay with Surcharge Sensor with TIENet™ Connector (75 Ft.)

LevelRay with Surcharge Sensor with TIENet™ Connector (75 Ft.)

604874112

$ 1,715.00
$ 1,715.00
Sale Sold out

LevelRay with Surcharge Sensor with TIENet™ Connector.  Includes 75 ft. (23 m) cable.  Uses FMCW (Frequency Modulated Continuous Wave) technology to remotely measure liquid level. The sensor is mounted over the flow stream, transmitting and receiving radar waves that are reflected off the liquid’s surface. The elapsed time between transmitted and returned signals determines liquid level. The non-contact measurement method reduces the frequency of maintenance and is ideal for applications where the flow may contain chemicals, grease, silt, or suspended solids.

Estimated Shipment Time (After Receipt of Order):  45 Day(s)

Specifications

LevelRay Level Sensor Specifications
Technology: FMCW Radar
Measurement Range: 0 to 26 ft. (0–8 m)
Accuracy from Sensor Face at 72 °F (22 °C): ±0.08 inch ±2 mm
Beam Angle: ≤8° 4° From center line
Radar Signal: 60 GHz
Bluetooth™: 2.4 GHz
Deadband: Zero deadband
Material: HDPE
Enclosure: IP68
Certifications:
CE/UL/CSA/UKCA/RoHS
FCC 47 CFR Part 15
ETSI EN 302 729
Temperature Range:
Operating: -4 to 160 °F (-20 to 60 °C)
Storage: -40 to 176 °F (-40 to 80 °C)
Power Required: 9–27 VDC
Communication Protocol:
TIENet™, Modbus RS485

Surcharge Measurement
Technology: Pressure Transducer
Material: Stainless Steel
Certification: CE EN61326
Temperature Range:
-4 to 140 °F (-20 to 60 °C)
Measurement Range:
0 to 33 ft. (0 to 10 m)
Accuracy:
±0.10% of full scale
Stability:
±0.023 ft/yr (0.007 m)

Dimensions

Size (H x W x D):
2.5 x 2.38 x 8.5 in.
6.35 x 6 x 21.6 cm

Weight:
4.5 lbs. (2.0 kg) for 75 ft (23 m) w/o connector
