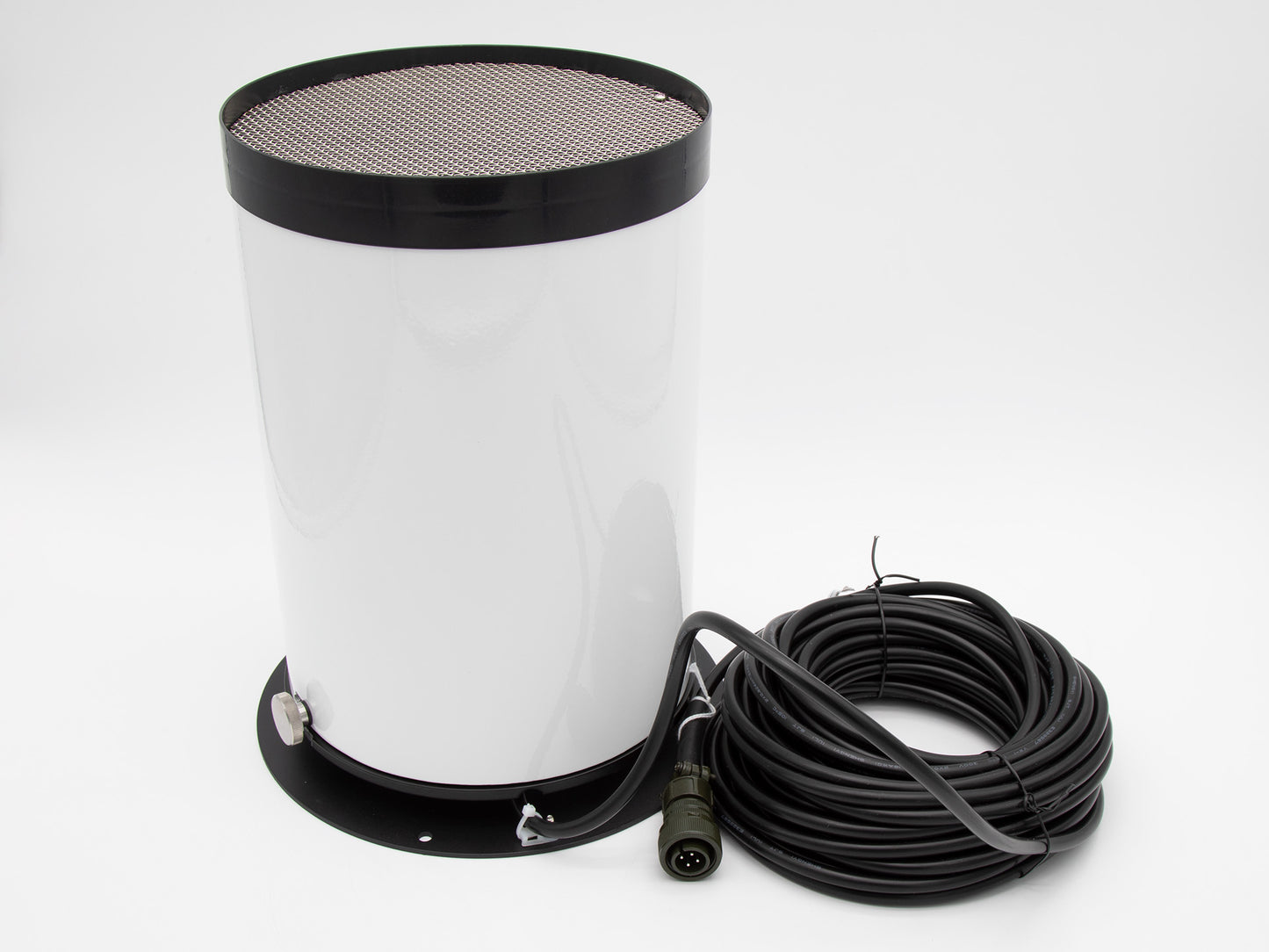

• White cylindrical object with black base and spool of cord with connector.

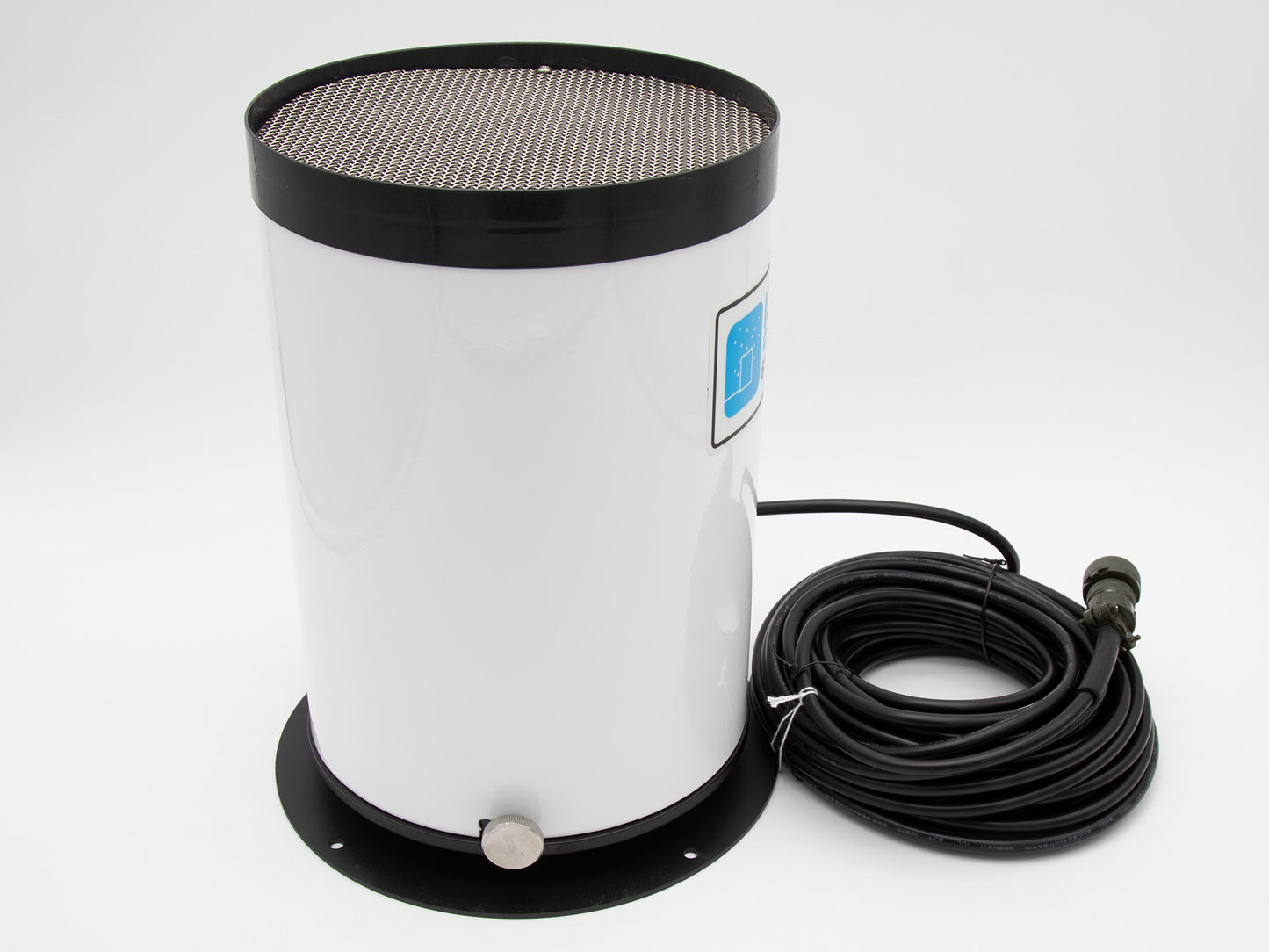

  • White cylindrical object with black base and spool of cord with connector.

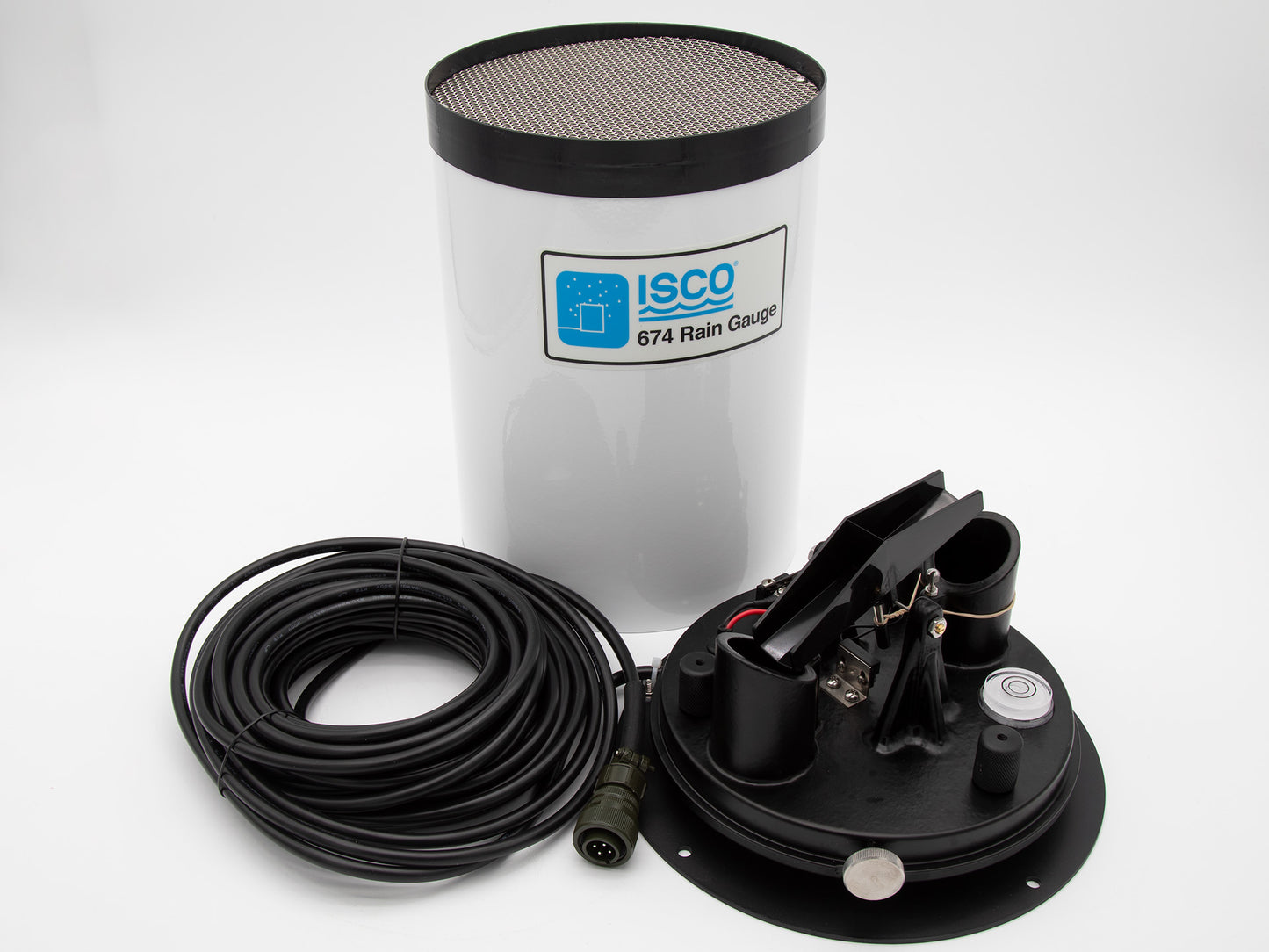

  • White cylindrical object with black base and spool of cord with connector.

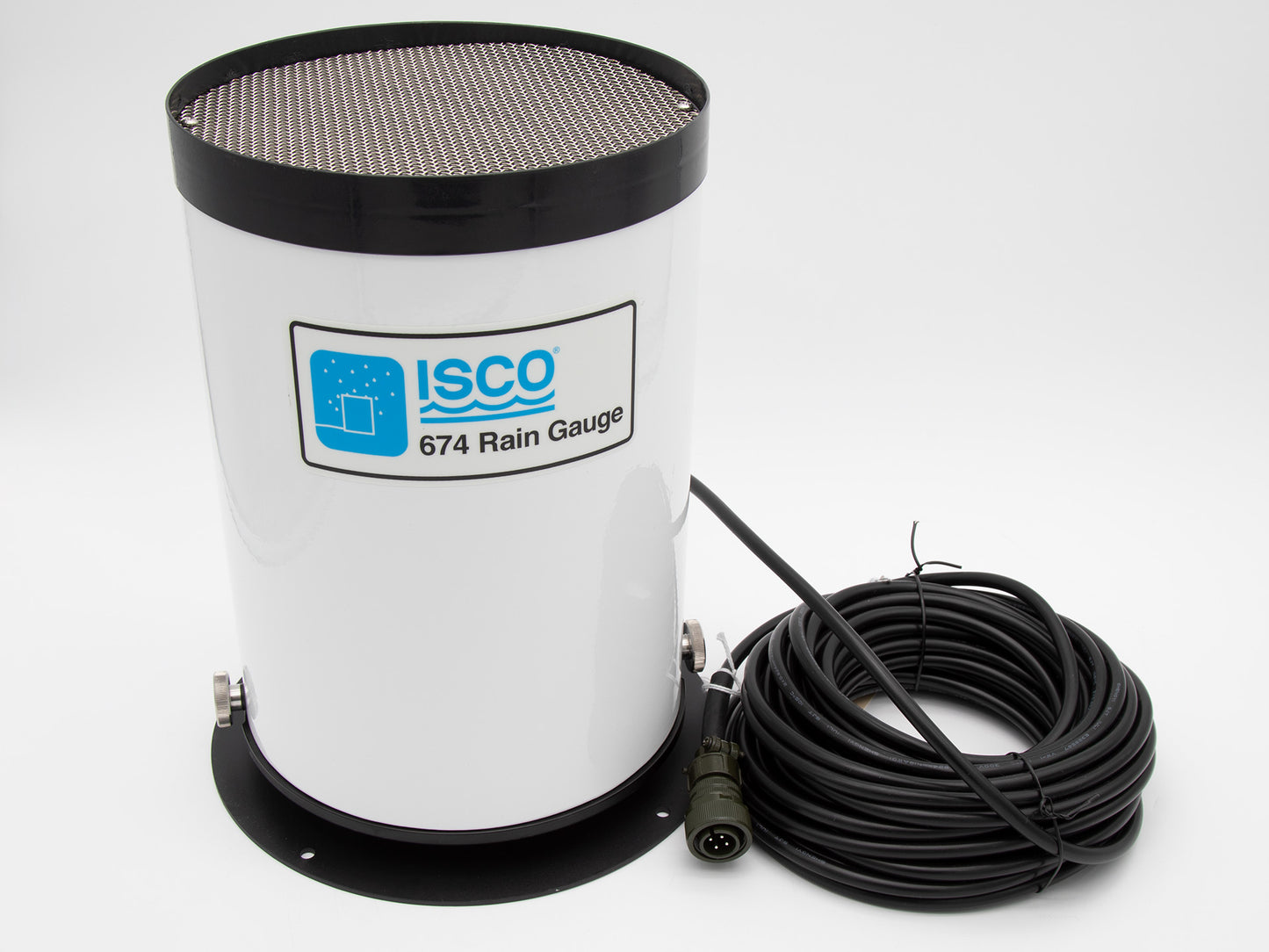

  • White cylindrical object with black base and spool of cord with connector.
1 4

ISCO 674 Rain Gauge (0.01-Inch Tip)

ISCO 674 Rain Gauge (0.01-Inch Tip)

603284001

$ 1,251.00
$ 1,251.00
Sale Sold out

ISCO 674 Rain Gauge. Tips every 0.01 inch of rainfall. Tipping bucket rain gauge with 50 ft. (15.24 m) cable and connector.  For use with 4100 Series Flow Logger, 4200 Series Flow Meter, Avalanche®, BLZZRD™, 6700 Series Sampler and Signature® Flow Meter.

Can also be used with the DuraTracker® with the TIENet™ 305 Interface.

Estimated Shipment Time (After Receipt of Order):  7 Day(s)

Specifications

Specifications:
Type: Tipping Bucket
Orifice: 8 Inches (20 cm) diameter
Sensitivity: 0.01 Inches
Accuracy: +/- 1% at 2 Inches per hour; +3 -4% up to 5 Inches per hour
Maximum Capacity: 22 Inches per hour
Connector Pinout: Pin A - Red, + 12V DC from Flow Meter; Pin D - Black, Output from Rain Gauge
Output Signal: Contact closure, 50 milliseconds minimum duration
Switch Type: Hermetically sealed magnetic reed switch. Normally open, 200V DC, 0.5 A maximum
Operating Temperature: 32 to 140 degrees F (0 to 60 degrees C)
Storage Temperature: -40 to 140 degrees F (-40 to 60 degrees C)

Dimensions

Dimensions: (at base)
Height: 13 Inches (33 cm)
Diameter: 9.5 Inches (24 cm)
Weight: 10 lbs. (4.5 Kg)
