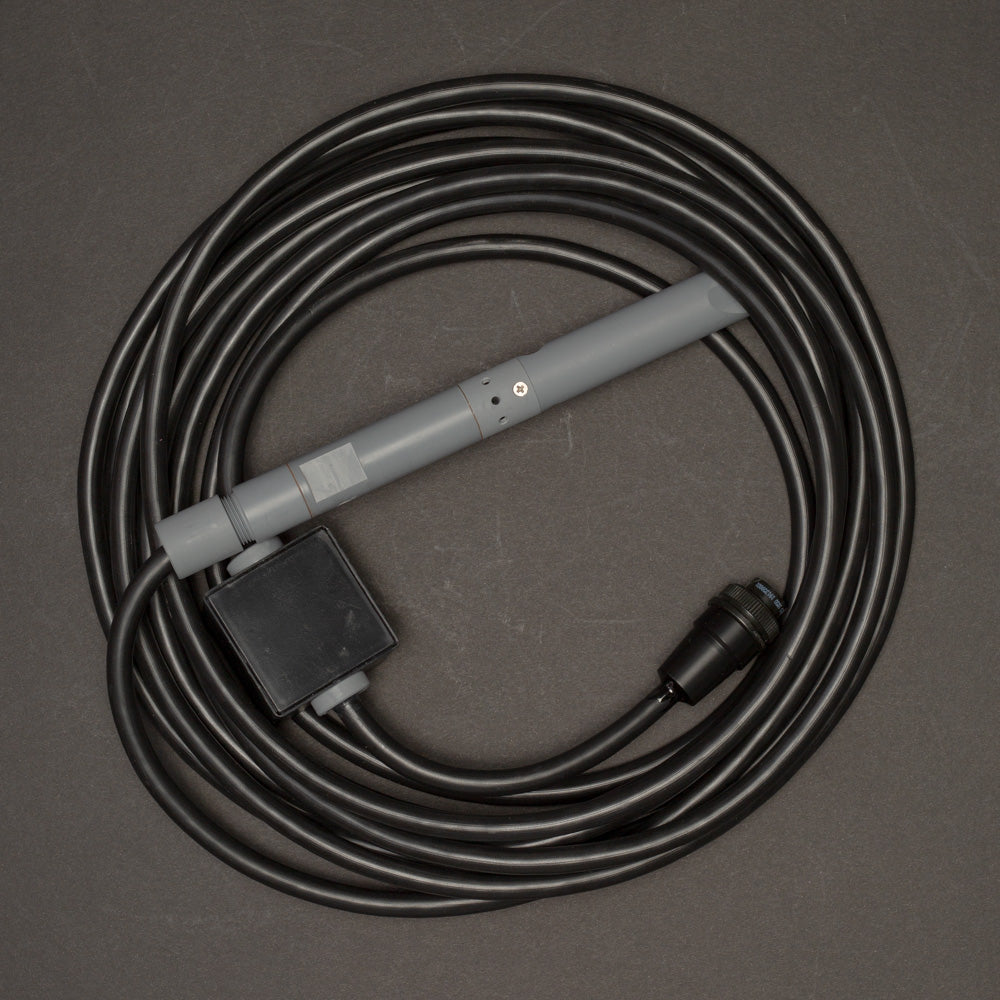

Submerged Probe Level Sensor With 25 Ft. Cable

Hazardous Location Rating: UL Classified for use in Class I, Division 1, Groups A,B,C, & D hazardous locations as defined by Article 500 of the National Electrical Code when installed with ISCO Intrinsically Safe Barrier and Quick Disconnect Box.
Cable Length: 25 Ft. (7.6 m)
Cable Diameter: 0.3 Inches (0.8 cm)
Weight with Cable: 3 Lbs. (1.4 Kg)
Level Measurement Method: Submerged pressure transducer mounted in the flow stream
Transducer Type: Differential linear integrated circuit pressure transducer
Level Measurement Range: 0.1 to 10 Ft. ().03 to 3.05 m)
Maximum Allowable Level: 20 Ft. (6.1 m)
Operating Temperature: 32 degrees F to 120 degrees F (0 degrees C to 49 degrees C)
Compensated Temperature: 32 degrees F to 100 degrees F (0 degrees C to 38 degrees C)
Materials: Type 316 stainless steel, Chlorinated Polyvinyl Chloride (CPVC)
Cable: Polyvinyl Chloride (CPVC)

Sensor Dimensions:
Length: 9.5 Inches (24.1 cm)
Diameter: 0.875 Inches (2.2 cm)
